The PSH14HW 2D scanning head is engineered for high-power laser processing applications. It supports scenarios with laser power up to 1000 W and delivers full dynamic performance.
Water-Cooled Heat Dissipation: Equipped with a water cooling system to meet heat dissipation requirements during continuous high-power operation
High Sealing Protection: Highly sealed housing with excellent air tightness
Anti-Reflection & Safety Design: Special construction provides strong resistance to laser reflection and enhanced operational safety
Application Fields
The PSH14HW 2D scanning head is applicable to high-power laser processing fields, including laser marking, laser cleaning, drilling, welding, scribing, material processing, flying marking and more.
Mechanical Drawing（Unit of dimension: mm）

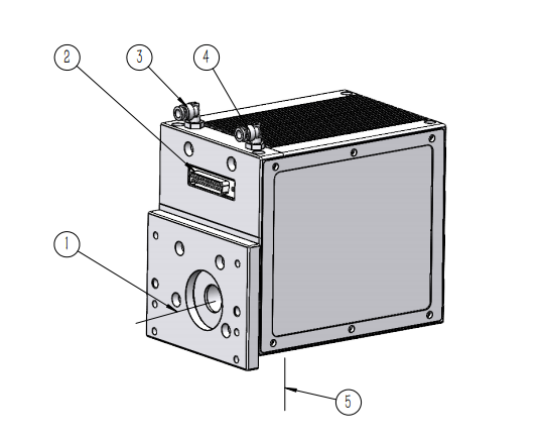

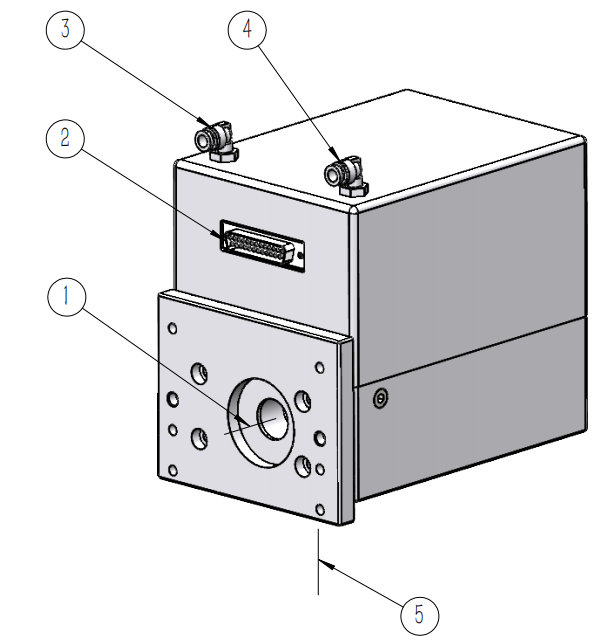

 | Legend: 1.Laser Inlet 2.Electrical Interface (XY2-100 / PRS422) 3.Water Cooling Inlet 4.Water Cooling Outlet 5.Laser Outlet |
| PSH14HW | |
 |  |

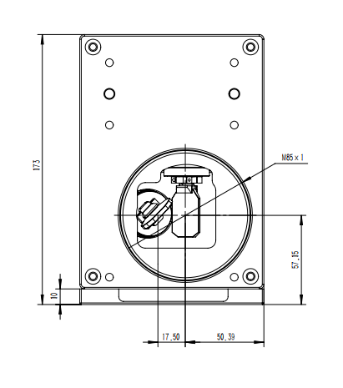

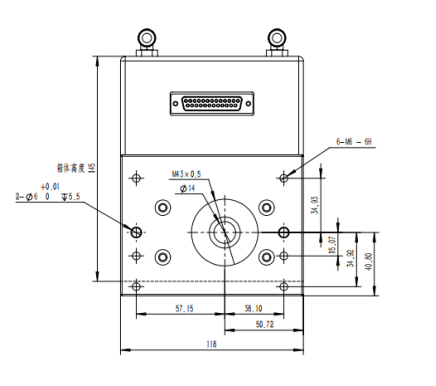

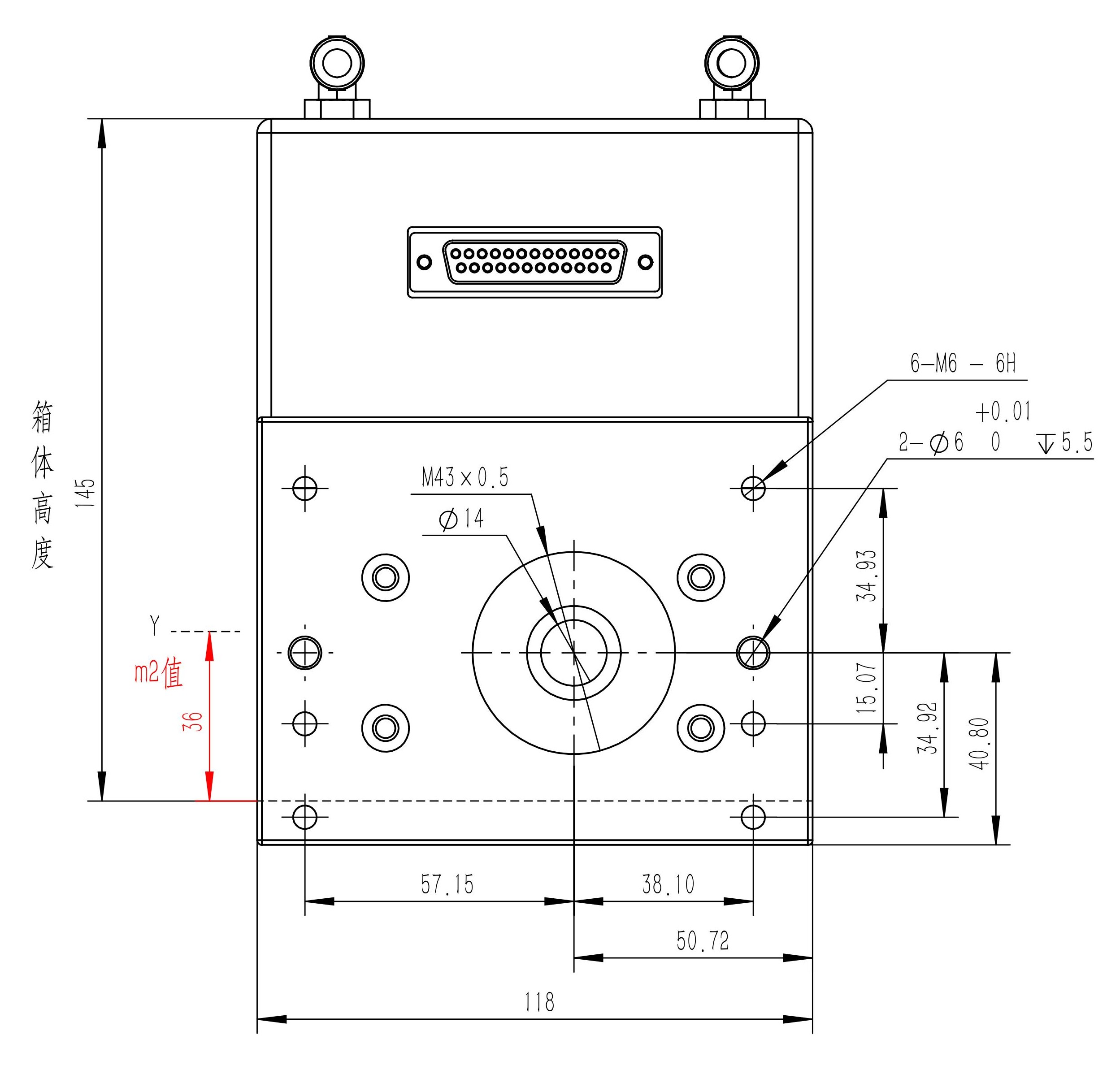

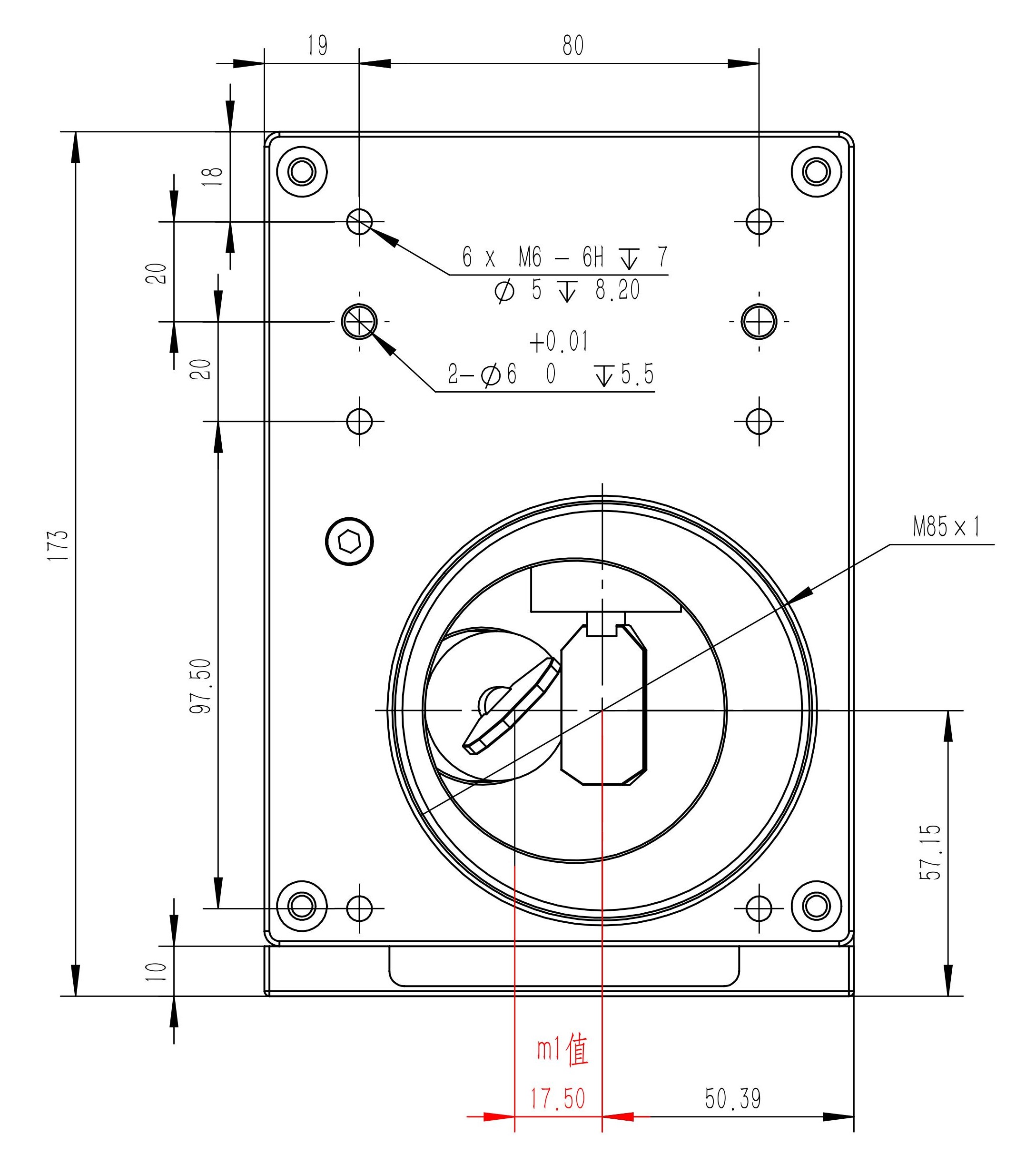

| Input Plate & Mounting Plate | Output Plate |
Specifications
PSH14HW | Specifications |
Maximum allowed average laser power(1) | 1000 W |
Optional adaptable wavelengths(8) | 355nm；532nm；1030-1090nm |
Cooling | Water |
Aperture | 14 mm |
Effective scan angle(2) | ± 10° |
Tracking error | ≤0.15ms |
Step response | ≤0.36 ms |
Speed | |
Positioning / Jump(3) | ＜25m/s |
Line scan(3) | ＜25 m/s |
Vector scan(4) | ＜3 m/s |
Good writing quality(3)(5) | 700 cps |
Precision | |
Linearity | 99.9% |
Repeatability | 2 μrad |
Temperature drift | |
Offset | 20 μrad/℃ |
Gain | 20 μrad/℃ |
Long time drift(after 30 mins warm up) | |
Over 8 hours long-term offset drift | 40 μrad |
Over 8 hours long-term gain drift | 80 μrad |
Operating temperature range | 25 ℃ ± 10 ℃ |
Signal interface | Analog:± 10 V or ± 5 V |
Digital:XY2-100 or PRS422 | |
Input power requirement(DC) | ± 15 V @ 5 A Max RMS |
Volume | 118mm×165mm×145mm |
Note:
(1) For laser wavelength 1030-1090 nm.
(2) All angles are in mechanical degrees.
(3) With F-Theta objective f = 160 mm. Speed value varies correspondingly with different focal lengths.
(4) Reapeatibility and temperature drift are measured within this speed.
(5) Single-stroke font with 1 mm height.
(6) Long-term temperature drift is given under an ambient temperature environment of 25°C. and a working load under 500W. Temperature drift testing with high laser power is strictly prohibited. High laser power could induce thermal deformations in both the optical and mechanical systems, making it impossible to differentiate whether the drift is originating from galvanometer scanner itself or due to deformations in the optical and mechanical systems.
(7) Appropriate delay parameters must be configured for normal operation of the galvo scanner. Failure to do so may result in abnormal operation of the galvo motor and even irreversible damage to the motor! Please contact PSI engineers regarding relevant parameter configuration issues.
(8) Wavelength customization available. Please consult PSI engineers!
