The DFS30 3D scanning system adopts dynamic focusing technology, delivering premium focal spot quality together with large-format and curved surface processing capacity. The system features high dynamic axis resolution, uniform focal spot shape and fast dynamic response. It provides reliable machining accuracy with minimal operational drift, meeting the requirements of long-term continuous production.
Low Thermal Drift：2D scanning module: Long-term zero drift ≤ 80 μrad after over 8 hours of continuous operation
High-Resolution Dynamic Focus Module：Dynamic focusing resolution ≤ 0.3 μm
High-Speed Performance：2D scanning module: Tracking error ≤ 0.4 ms
Application Fields
The DFS30 3D scanning system is widely applied in textile, paper, leather, plastic film, automotive manufacturing, metal processing, packaging and other industries.

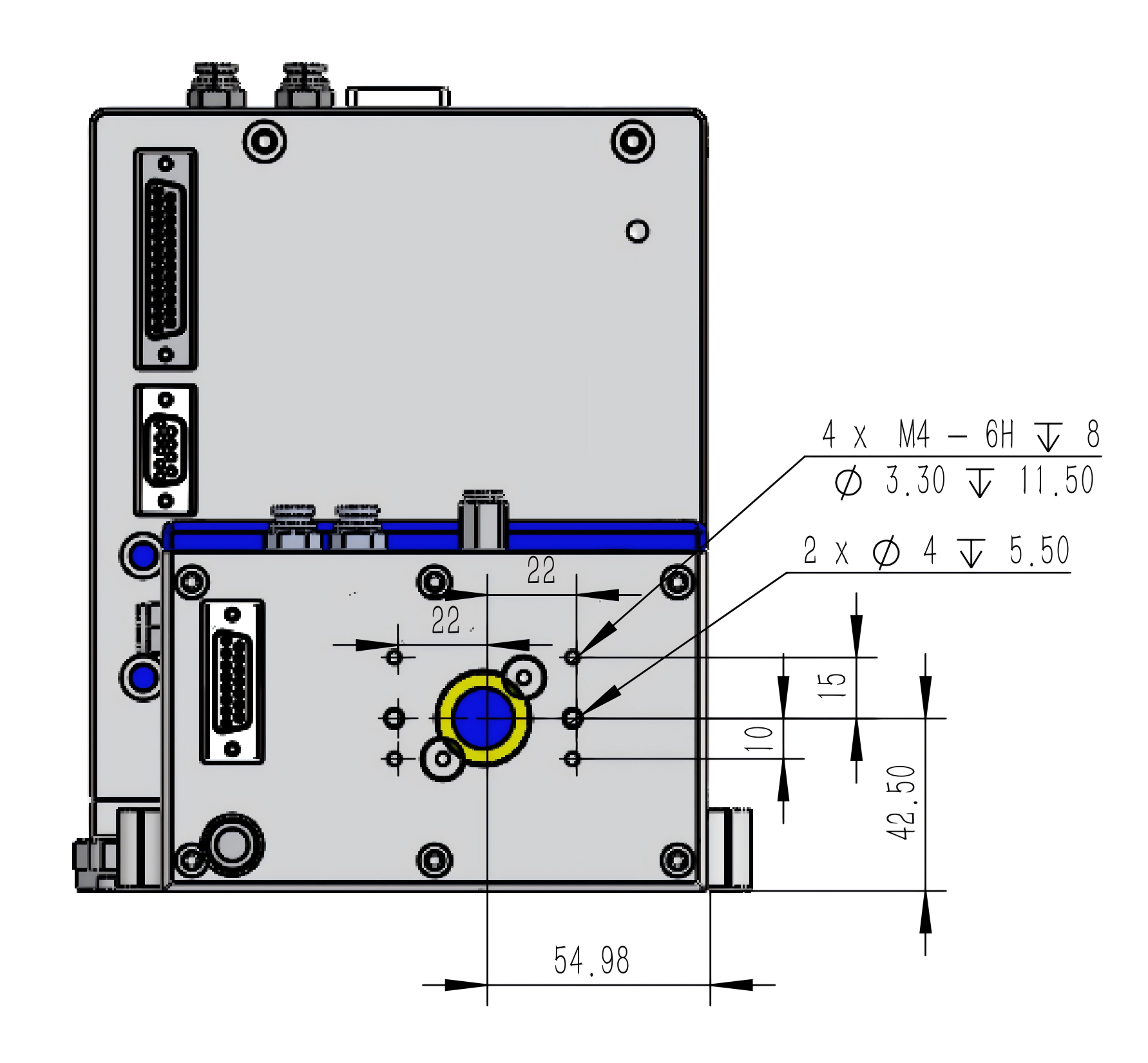

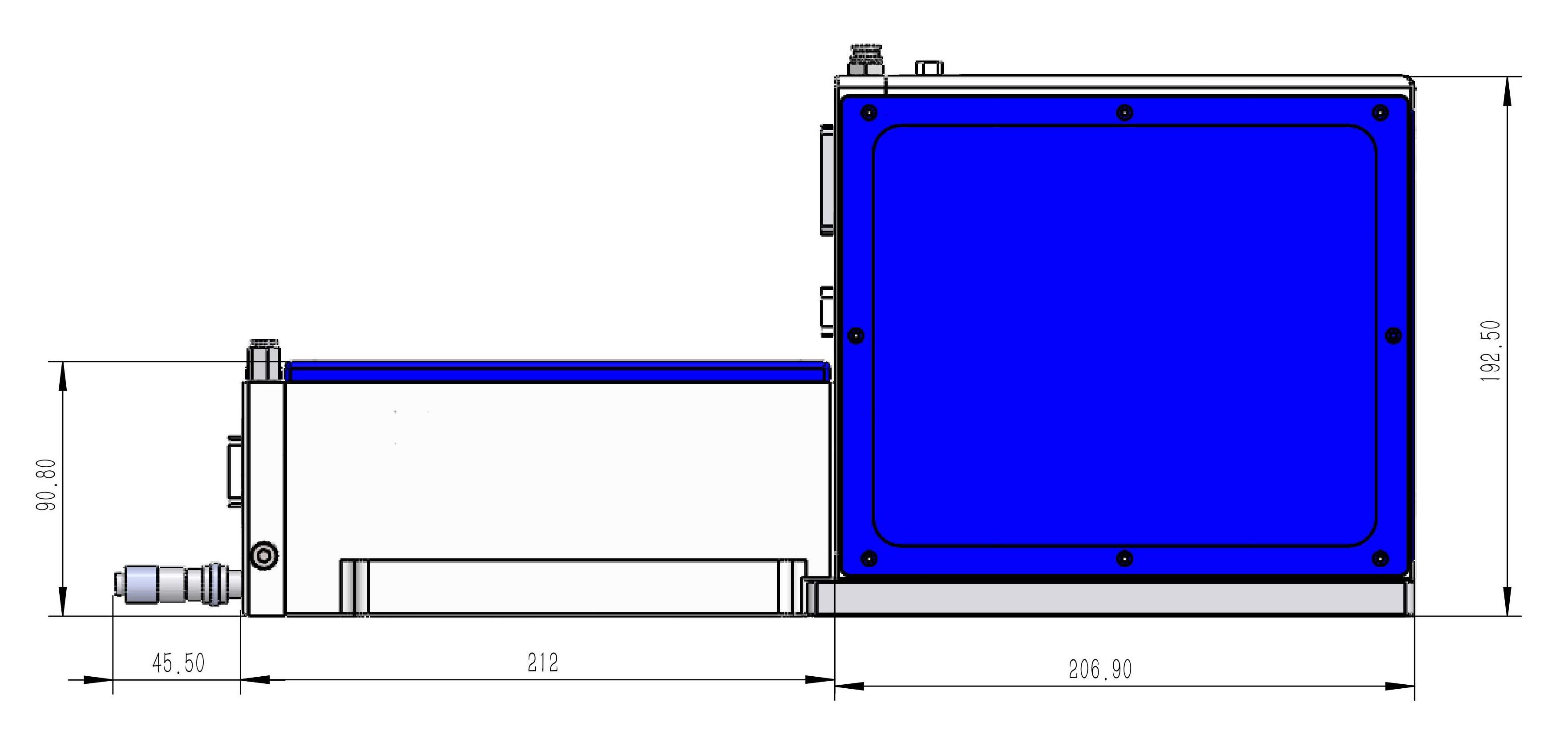

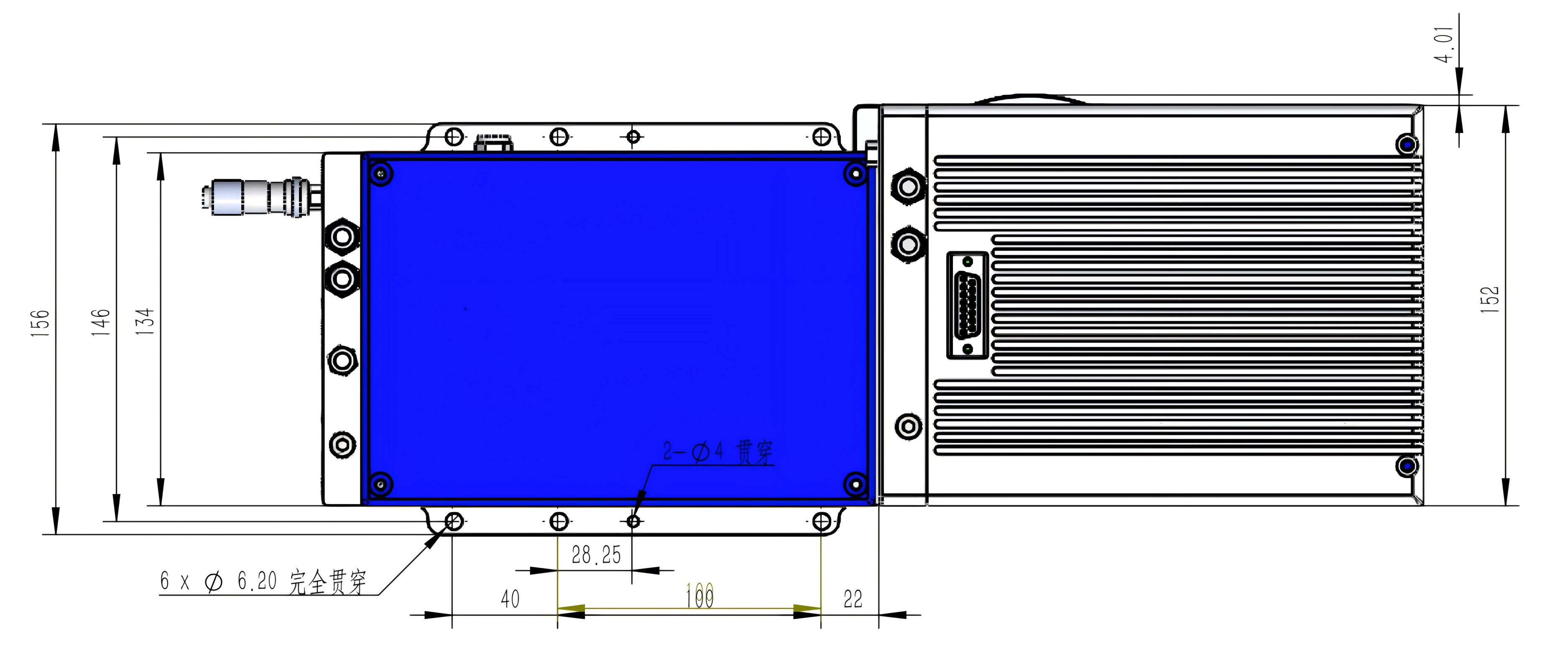

Mechanical Drawing（Unit of dimension: mm）
 |  |
 |
Specifications（DFS30-1.064-WA）
Scan Field（mm×mm） | 400×400 | 500×500 | 600×600 |
Wavelength（nm） | 1064 | ||
Entrance Aperture（mm） | 15 | 15 | 15 |
Work Distance（mm） | 590 | 690 | 820 |
Average Spot Size 1/e² (µm) | 37.2 | 44.7 | 56.1 |
Max. Laser Power CW (W) For 50% Duty Cycle (W) | 2000 4000 | 2000 4000 | 2000 4000 |
Focus Range in Z Direction(mm) | ±50mm | ±60mm | ±90mm |
Note:
(1) Working distance: distance from the lower end of the beam exit side of the head to the surface of the workpiece;
(2)M2= 1.
Specifications（DFS30-10.6-W）
Scan Field（mm×mm） | 500×500 | 700×700 | 1000×1000 |
Wavelength（nm） | 10600 | ||
Entrance Aperture（mm） | 12 | 12 | 12 |
Work Distance（mm） | 661 | 916 | 1400 |
Average Spot Size 1/e² (µm) | 46 | 71 | 110 |
Max. Laser Power CW (W) For 50% Duty Cycle (W) | 1000 2000 | 1000 2000 | 1000 2000 |
Note:
(1) Working distance: distance from the lower end of the beam exit side of the head to the surface of the workpiece;
(2)M2= 1.
