The DFS14 3D scanning system adopts dynamic focusing technology to deliver superior focal spot quality. It is suitable for large-format and curved surface processing to meet manufacturing demands across multiple industries. The system features excellent dynamic axis resolution and consistent focal spot performance, balancing outstanding dynamic response and processing accuracy. With minimal running offset, it maintains stable long-term operation.
Low Thermal Drift：2D scanning module: Long-term zero drift ≤ 80 μrad over continuous operation exceeding 8 hours
High-Resolution Dynamic Focus Module：Dynamic focusing resolution ≤ 0.3 μm
High-Speed Performance：2D scanning module: Tracking error ≤ 0.15 ms
Application Fields
The DFS14 3D scanning system is widely applied in industries including textiles, paper, leather, plastic film, automotive manufacturing, metal processing and packaging.

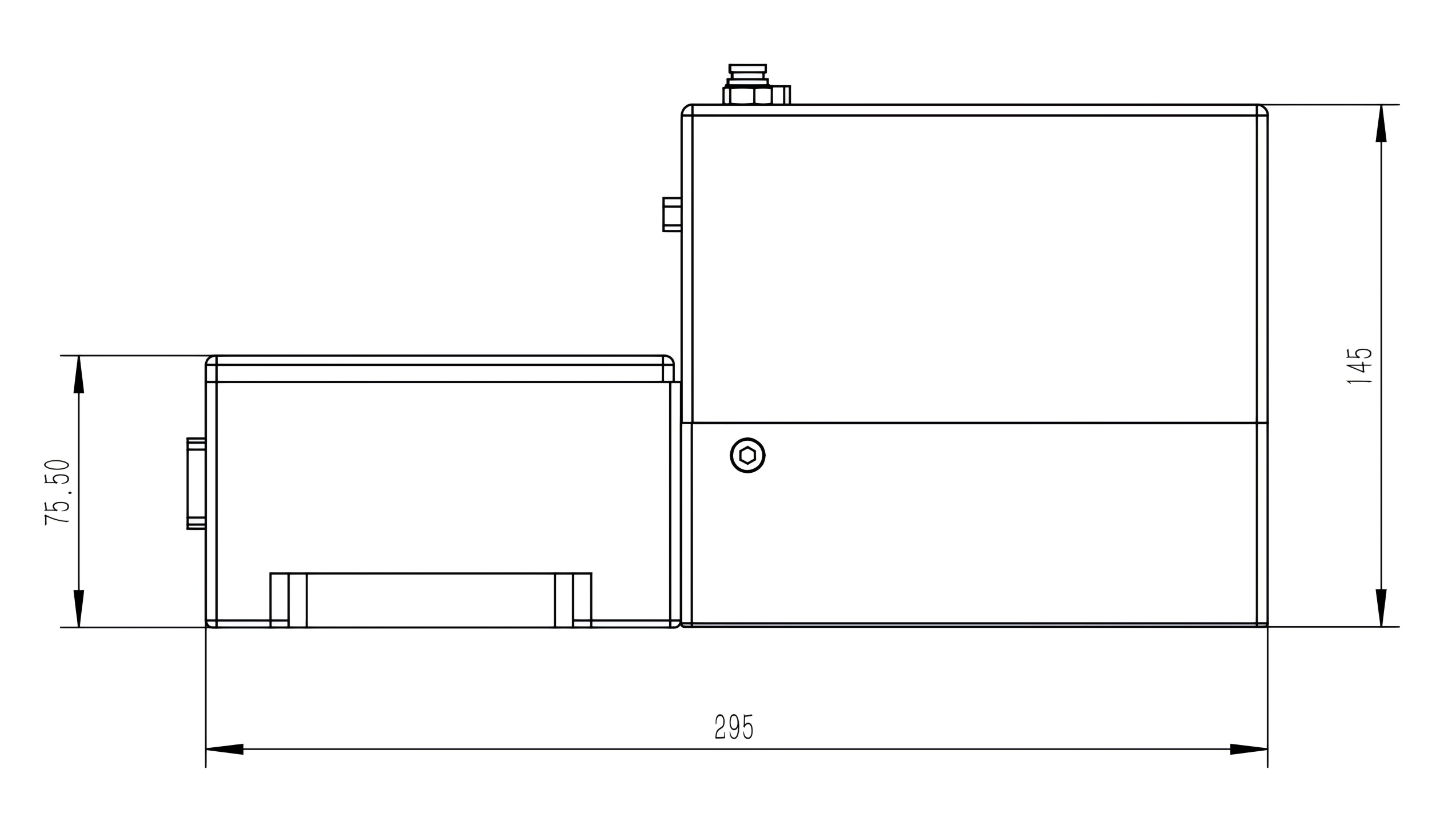

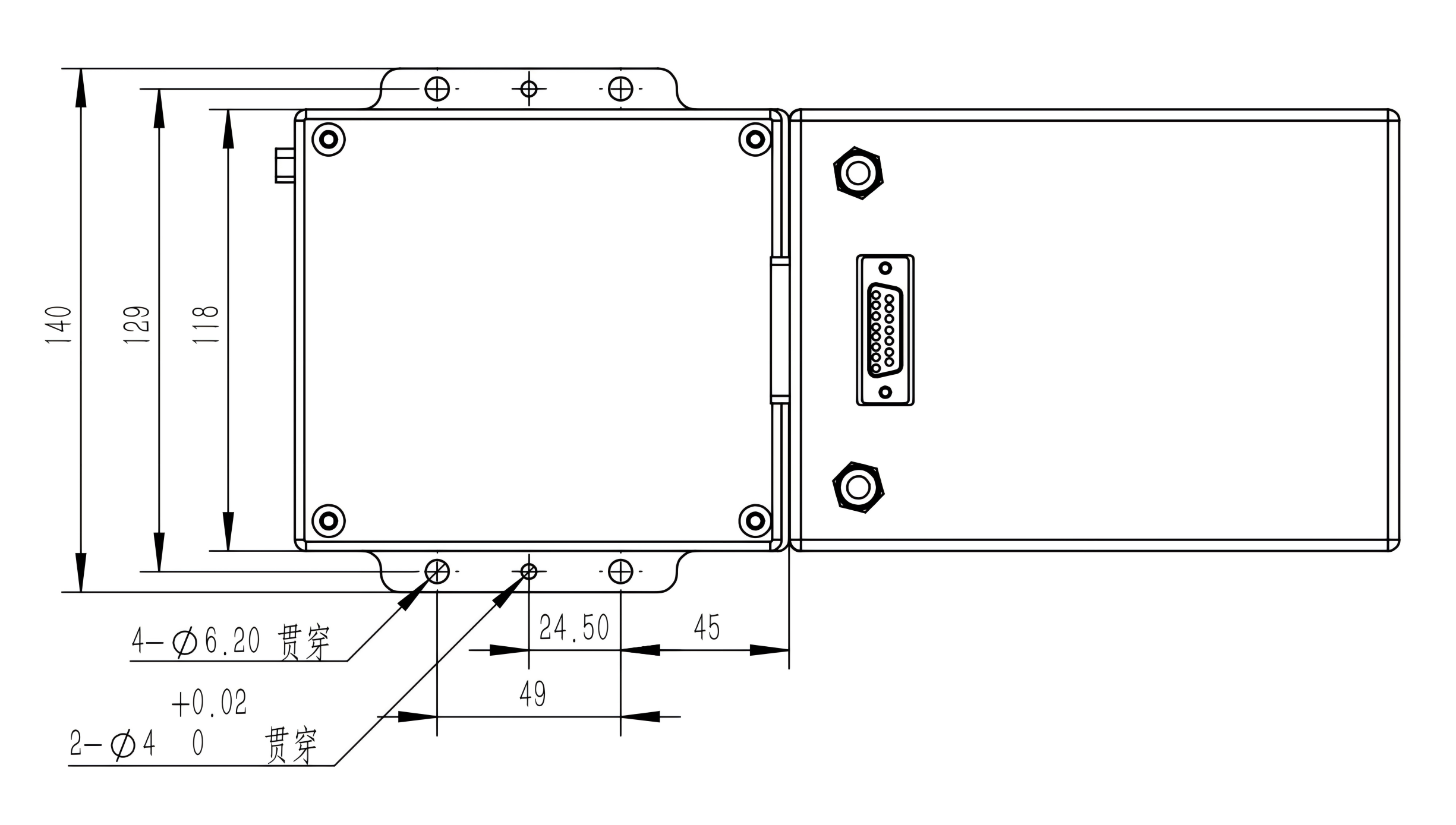

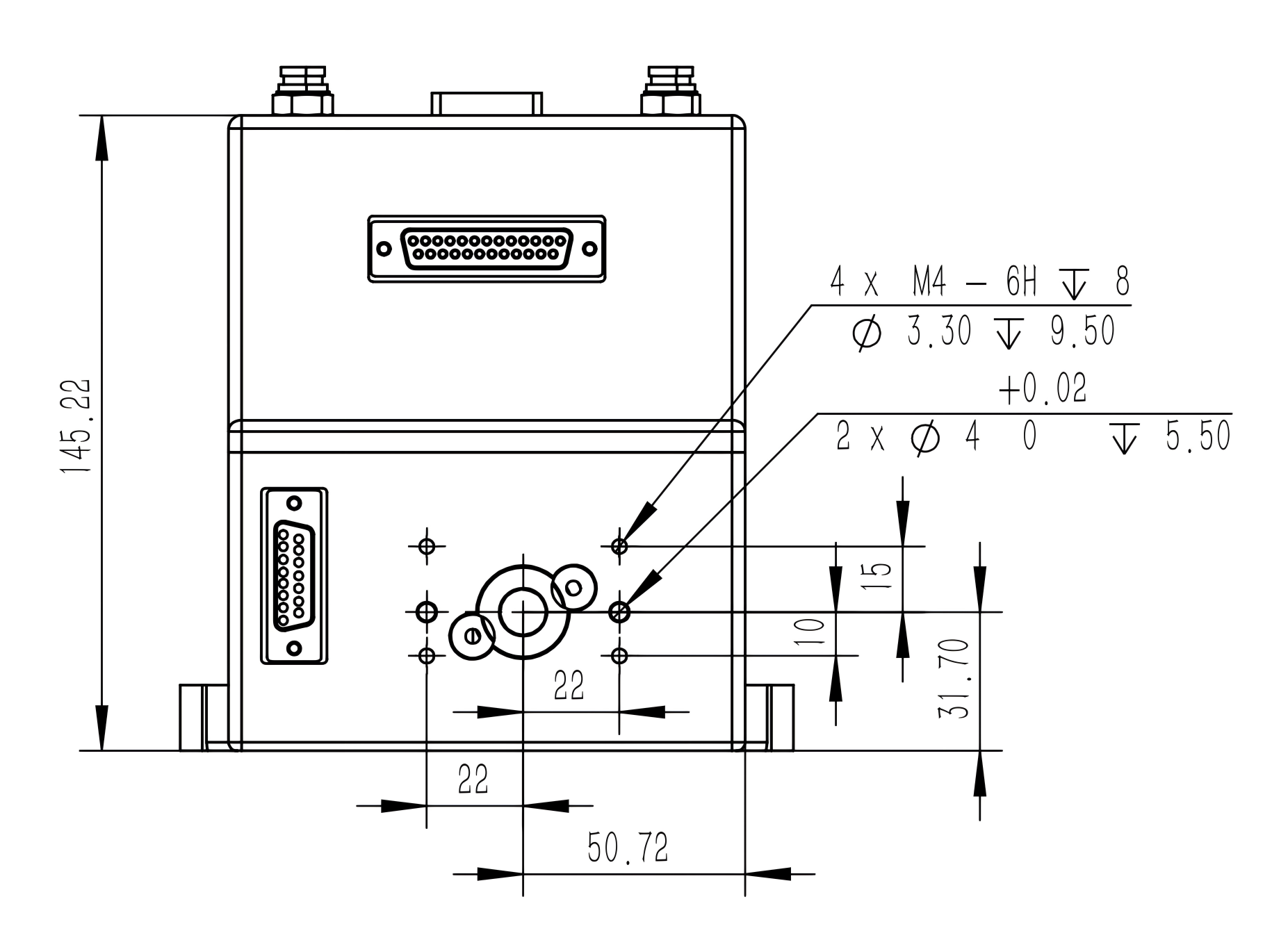

Mechanical Drawing（Unit of dimension: mm）
 |  |
 | |
Specifications
Scan Field（mm×mm） | 450×450 | 500×500 | 600×600 |
Wavelength（nm） | 1064 | ||
Entrance Aperture（mm） | 8 | 8 | 8 |
Work Distance（mm） | 550 | 600 | 700 |
Average Spot Size 1/e² (µm) | 83 | 90 | 106 |
Max. Laser Power CW (W) For 50% Duty Cycle (W) | 300 600 | 300 600 | 300 600 |
Note:
(1) Working distance: distance from the lower end of the beam exit side of the scan head to the surface of the work plane.
(2) M² = 1
