PS3000W scan welding system comprises collimator, galvanometer scanner, F-theta lenses, interface control cards and air knife to provide an integrated solution with optimal performance for various applications. It is also ideally suited to laser welding, laser cutting, laser cleaning, etc.
The system is characterized by its extraordinary tightness and safety design, and can be easily integrated into machines and product lines. The system is cost-efficient while exhibiting great dynamic performance, high positioning accuracy, low temperature drift and excellent long-term stability, thus making it suitable for various high-end demanding applications.

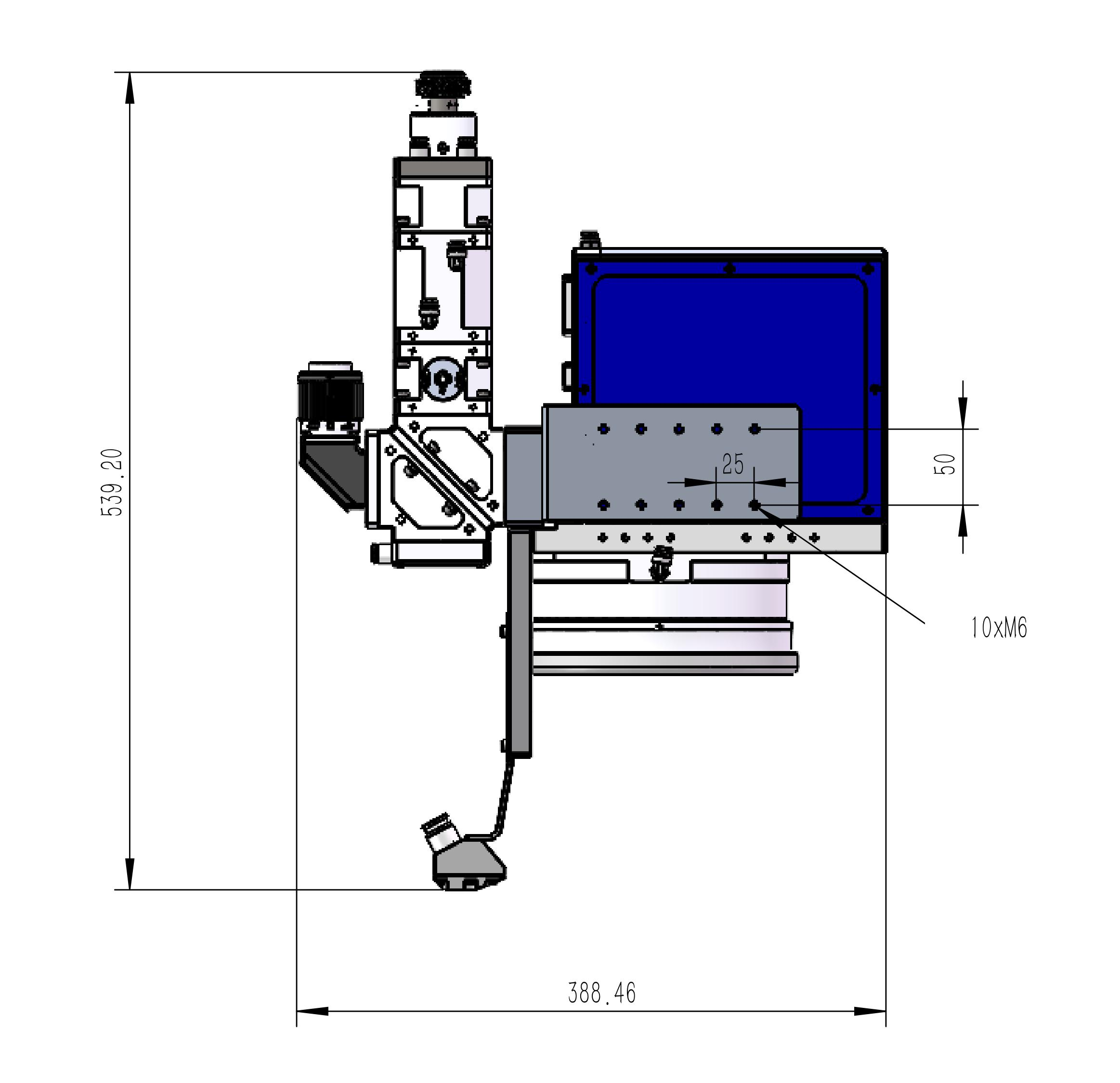

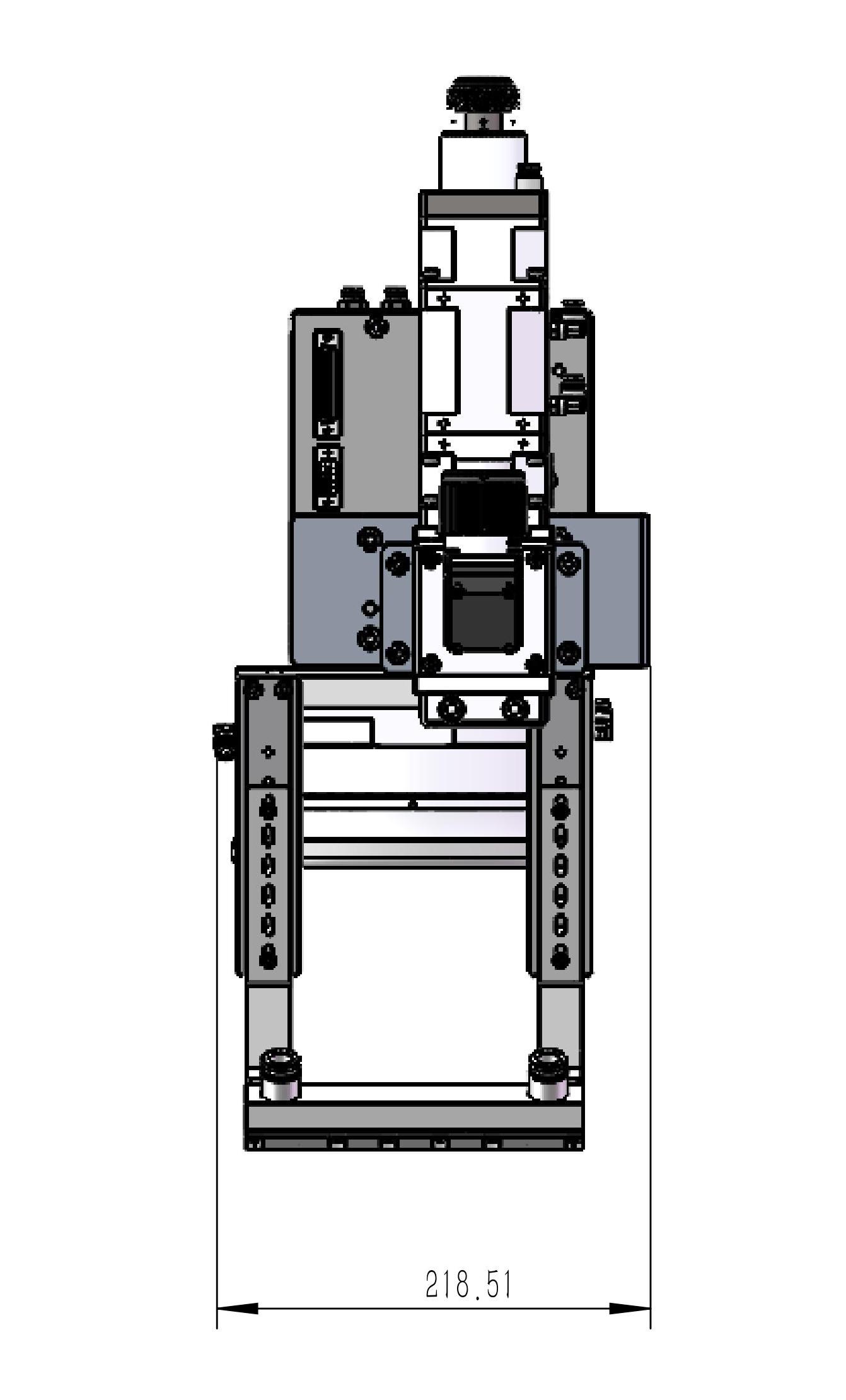

PS3000W | Specifications | |
Maximum allowed average laser power(1) | 3000 W | |
Cooling | Water | |
Aperture | 30 mm | |
Effective scan angle(2) | ± 10° | |
Tracking error | ≤0.4 ms | |
Step response (1% of full scale) | ≤1 ms | |
Speed | ||
Positioning / Jump(3) | ＜16 m/s | |
Line scan(3) | ＜16 m/s | |
Vector scan(4) | ＜2.1 m/s | |
Precision | ||
Linearity | 99.9 % | |
Repeatability | 2 μrad | |
Temperature drift | ||
Offset(μrad/℃) | 20 | |
Gain(μrad/℃) | 20 | |
Long time drift(after 30 mins warm up)(5) | ||
Over 8 hours long-term offset drift(μrad) | 40 | |
Over 8 hours long-term gain drift(μrad) | 80 | |
Operating temperature range | 25 ℃ ± 10 ℃ | |
Signal interface | Analog:± 10 V or ± 5 V | |
Digital:XY2-100 or PRS422 | ||
Input power requirement(DC) | ± 15 V @ 10 A Max RMS | |
Note:
(1) For laser wavelength 1030-1090 nm.
(2) All angles are in mechanical degrees.
(3) With F-Theta objective f = 348 mm. Speed value varies correspondingly with different focal lengths.
(4) Reapeatibility and temperature drift are measured within this speed.
(5) Long-term temperature drift is given under an ambient temperature environment of 25°C. and a working load under 500W. Temperature drift testing with high laser power is strictly prohibited. High laser power could induce thermal deformations in both the optical and mechanical systems, making it impossible to differentiate whether the drift is originating from galvanometer scanner itself or due to deformations in the optical and mechanical systems.
