The PSH14AW-3D 2D scanning head delivers high stitching accuracy, excellent position retention and long-term operational reliability.
High Precision: Micron-level positioning machining ensures consistent edges and seamless stitching.
High Speed: High-speed scanning shortens single-piece processing time for large-area stitching applications.
Low Thermal Drift: Stable performance across a wide temperature range to minimize thermal errors.
High Reliability: Less downtime for maintenance, ideal for mass production.
Application Fields
The PSH14AW-3D 2D scanning head is particularly suitable for laser manufacturing fields requiring multi-head splicing, such as 3D printing and electrode cutting.
Mechanical Drawing（Unit of dimension: mm）

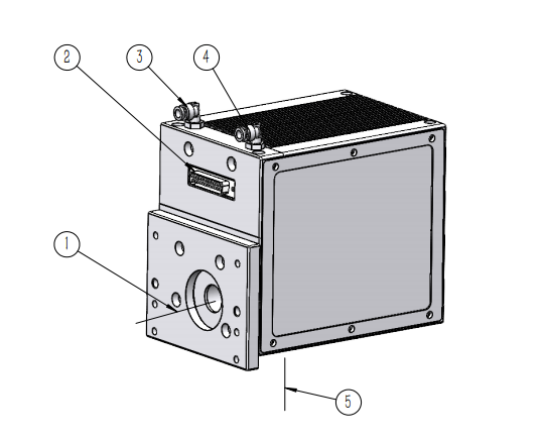

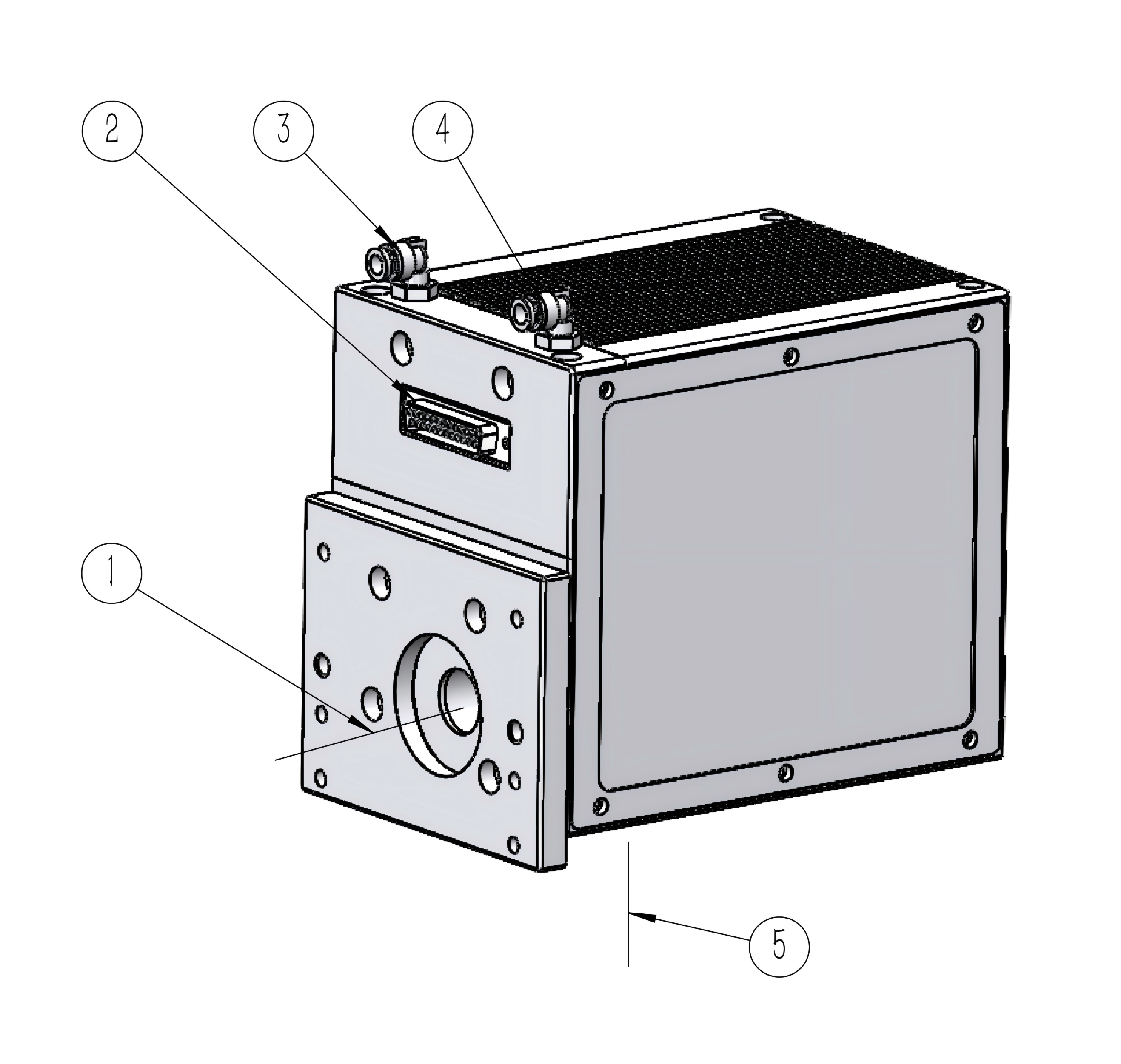

 | Legend: 1.Laser Inlet 2.Electrical Interface (XY2-100, Power Input) 3.Water Cooling Inlet 4.Water Cooling Outlet 5.Laser Outlet |
| PSH14AW-3D | |
|
|

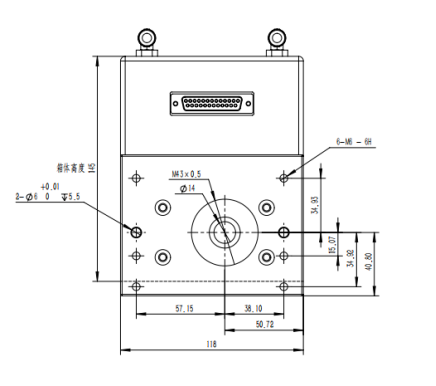

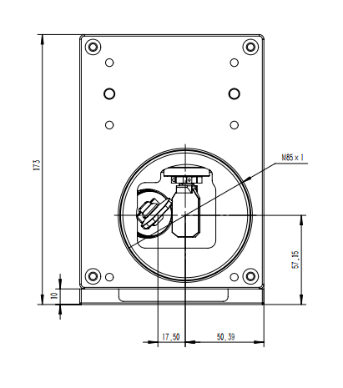

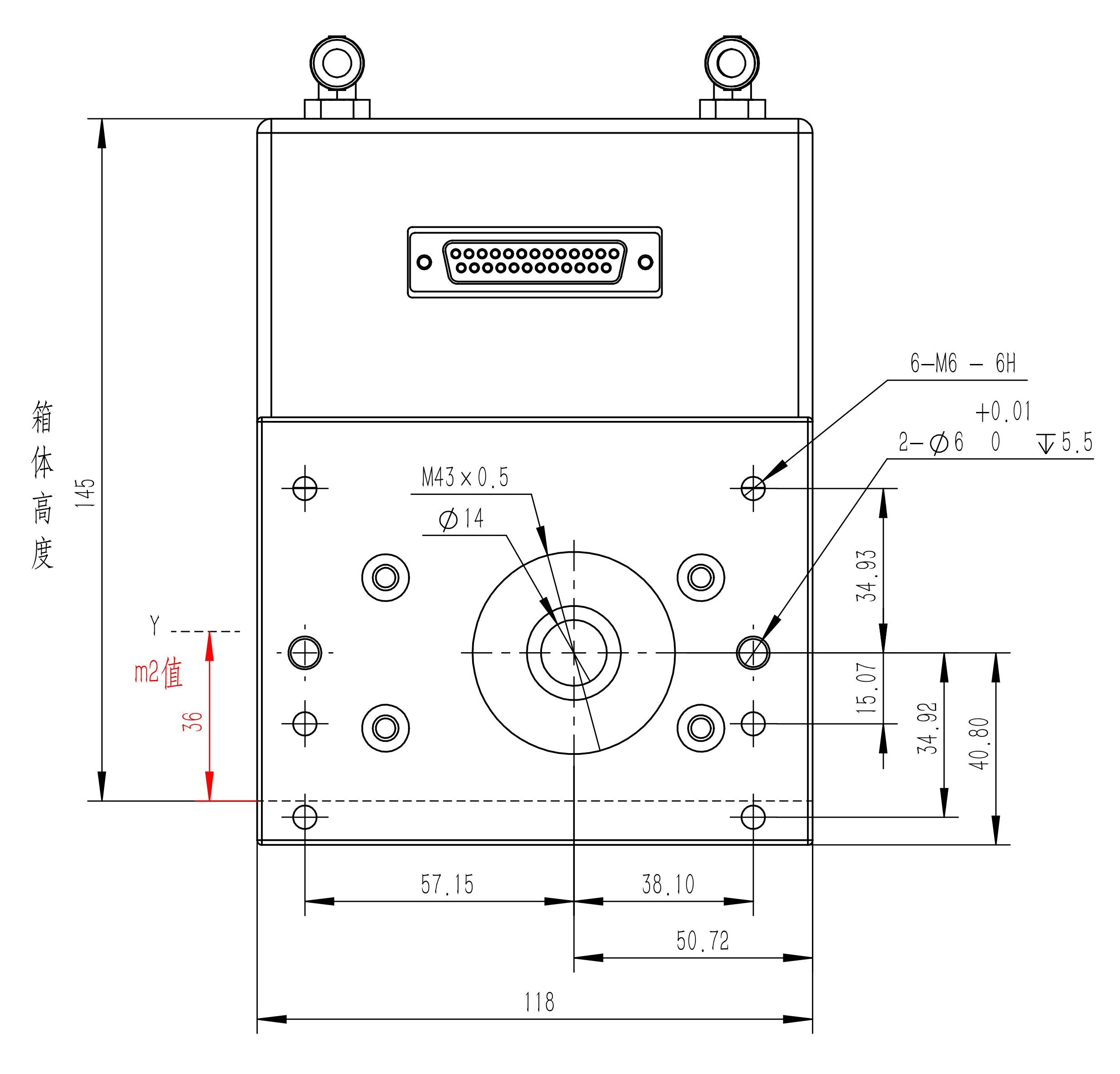

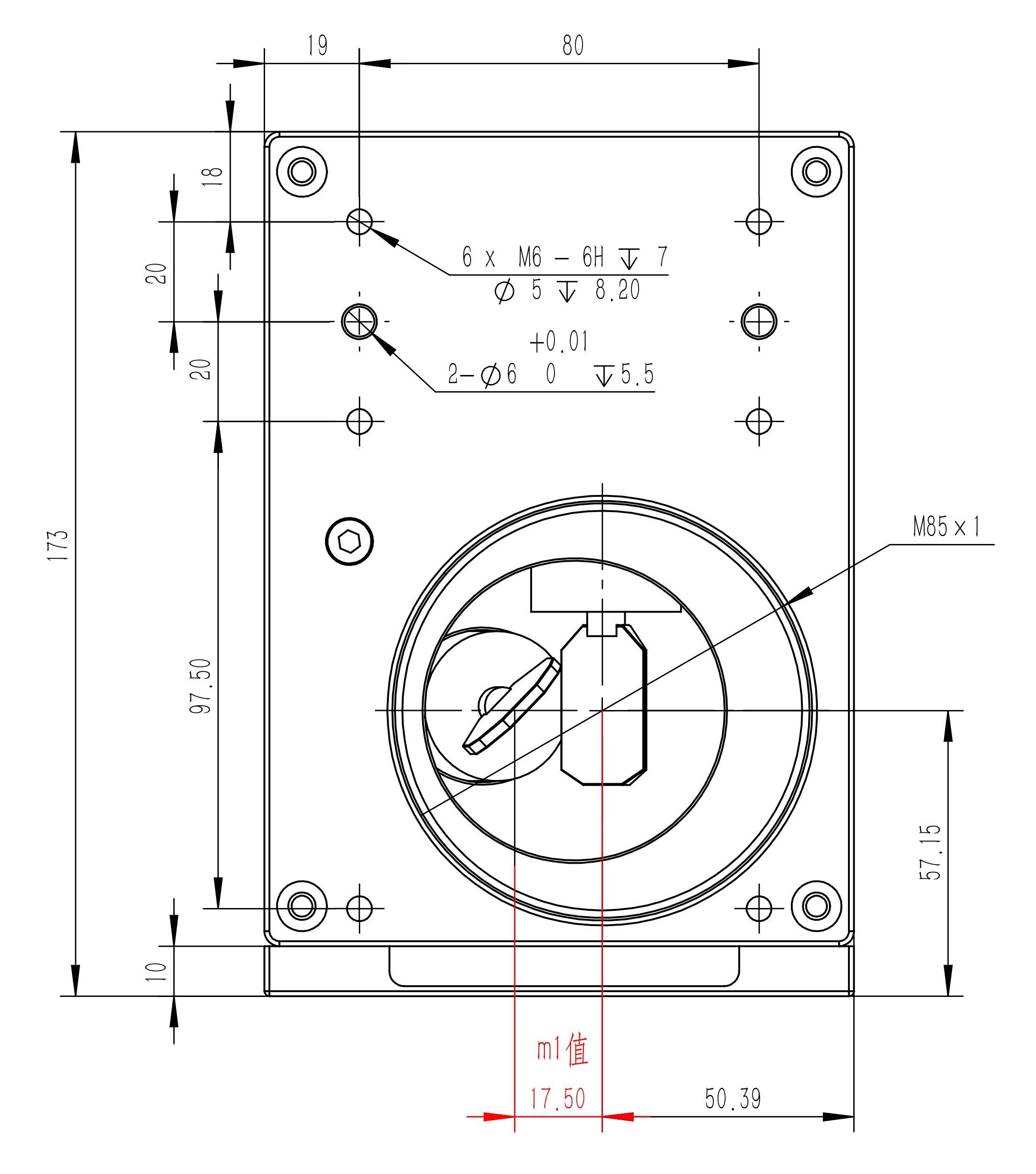

| Input Plate & Mounting Plate | Output Plate |
Specifications
PSH14AW-3D | Specifications |
Maximum allowed average laser power(1) | 500 W |
Optional adaptable wavelengths(8) | 355nm；532nm；1030-1090nm |
Cooling | Water |
Aperture | 14 mm |
Effective scan angle(2) | ± 10° |
Tracking error | ≤0.16ms |
Step response | ≤0.4 ms |
Speed | |
Positioning / Jump(3) | ＜20m/s |
Line scan(3) | ＜20 m/s |
Vector scan(4) | ＜3 m/s |
Good writing quality(3)(5) | 650 cps |
Precision | |
Linearity | 99.9% |
Repeatability | 2 μrad |
Temperature drift | |
Offset | 15 μrad/℃ |
Gain | 15 μrad/℃ |
Long time drift(after 30 mins warm up) | |
Over 8 hours long-term offset drift | 25 μrad |
Over 8 hours long-term gain drift | 40 μrad |
Operating temperature range | 25 ℃ ± 10 ℃ |
Signal interface | Analog:± 10 V or ± 5 V |
Digital:XY2-100 or PRS422 | |
Input power requirement(DC) | ± 15 V @ 5 A Max RMS |
Volume | 118mm×165mm×145mm |
Note:
(1) For laser wavelength 1030-1090 nm.
(2) All angles are in mechanical degrees.
(3) With F-Theta objective f = 160 mm. Speed value varies correspondingly with different focal lengths.
(4) Reapeatibility and temperature drift are measured within this speed.
(5) Single-stroke font with 1 mm height.
(6) The long-term thermal drift test shall be carried out under a constant ambient temperature of approximately 25 °C, with the laser power kept below 500 W. High laser power shall not be adopted for thermal drift testing. Under high laser power, thermal distortion will occur in both the optical system and mechanical system. Consequently, it cannot be determined whether the measured drift originates from the inherent drift of the galvo scanner or from thermal deformation of the optical and mechanical systems.
(7) Appropriate delay parameters must be configured for normal operation of the galvo scanner. Failure to do so may result in abnormal operation of the galvo motor and even irreversible damage to the motor! Please contact PSI engineers regarding relevant parameter configuration issues.
(8) Wavelength customization available. Please consult PSI engineers!
