The PSH20AW-3D 2D scanning head features high stitching accuracy, excellent position retention and long-term operational reliability, and it is specially designed for laser manufacturing sectors requiring multi-head splicing.
High Stitching Accuracy: Seamless joint of multiple scanning heads with precise boundary alignment
Excellent Position Retention: Maintains initial calibration status over long runs to reduce frequent recalibration
High Reliability: Supports high-intensity continuous operation with low failure rate and long service life
Application Fields
The PSH20AW-3D 2D scanning head is applicable to 3D printing, electrode cutting and other laser manufacturing fields requiring multi-head splicing. It delivers outstanding advantages especially in large-format processing and collaborative multi-scanner operation scenarios.
Mechanical Drawing（Unit of dimension: mm）

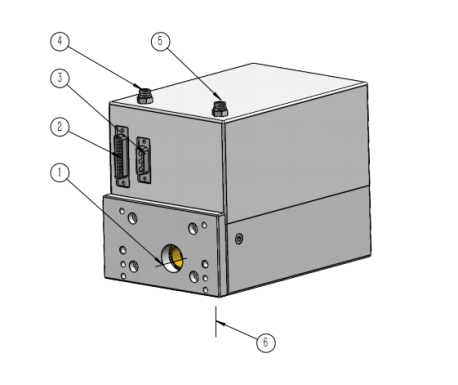

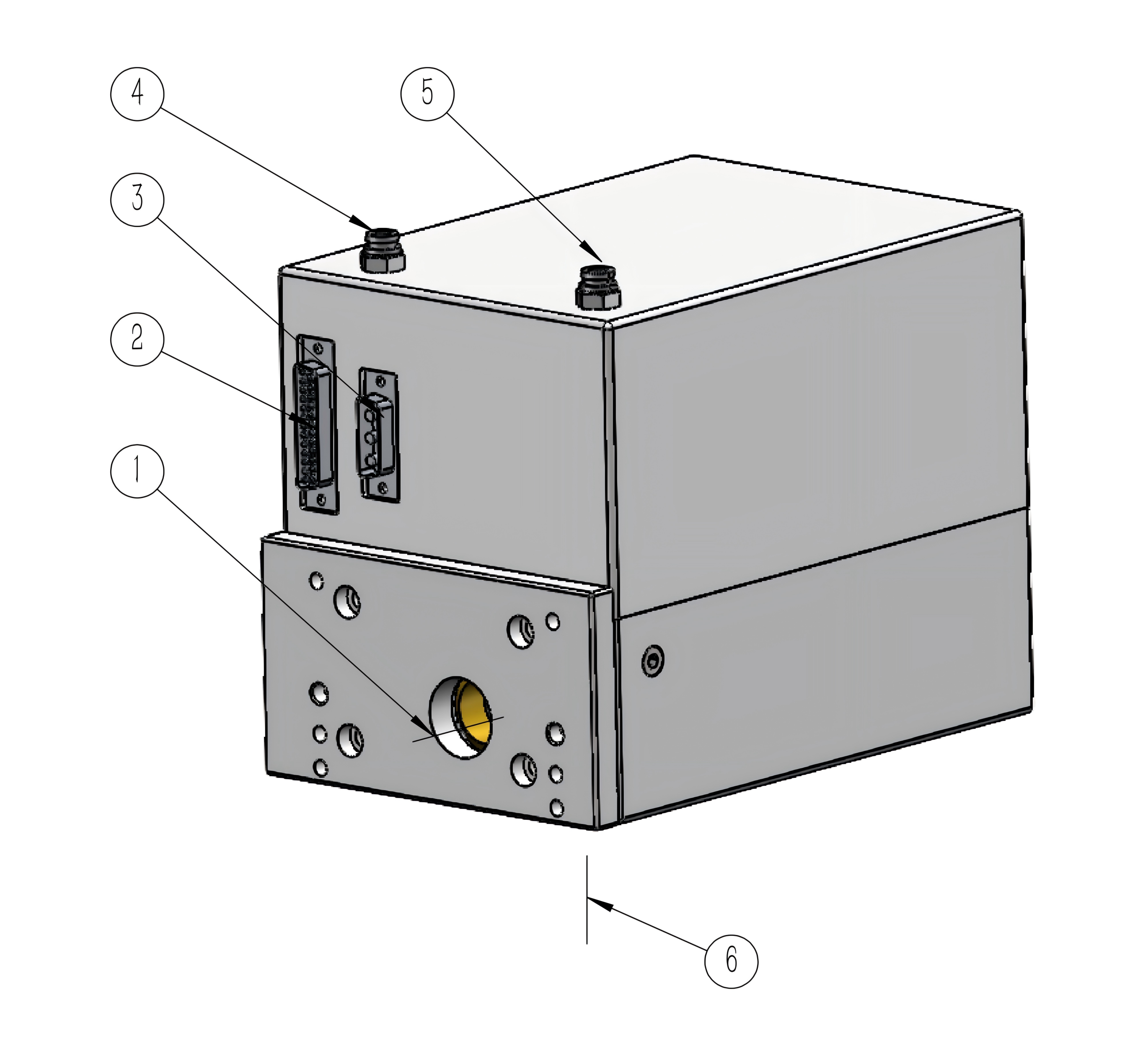

 | Legend: 1.Laser Inlet 2.Electrical Interface (XY2-100) 3.Power Input 4.Water Cooling Inlet 5.Water Cooling Outlet 6.Laser Outlet |
| PSH20AW-3D | |
 |  |

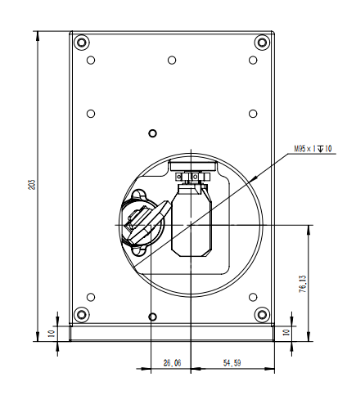

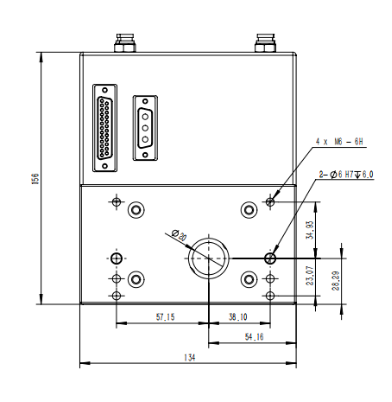

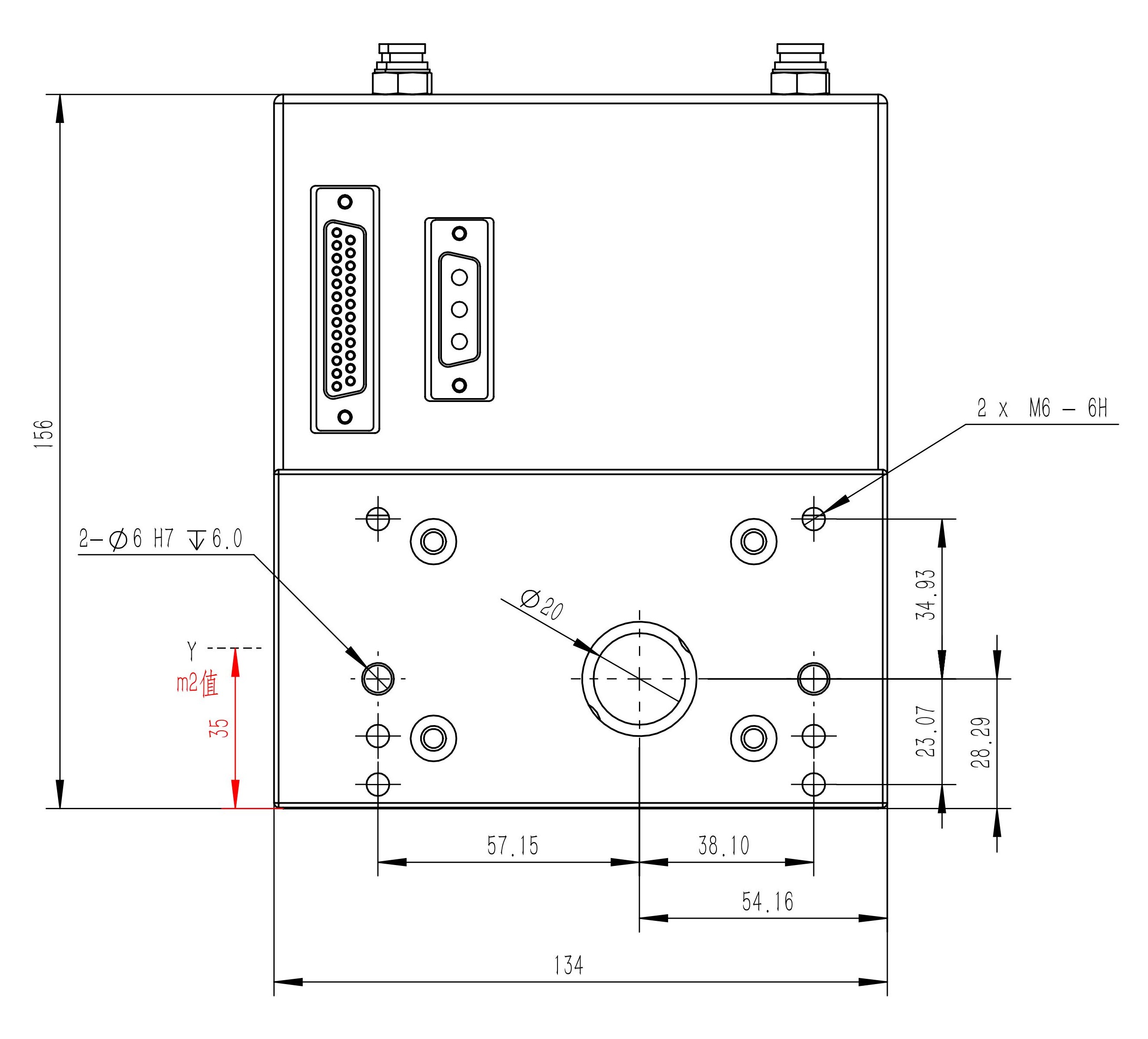

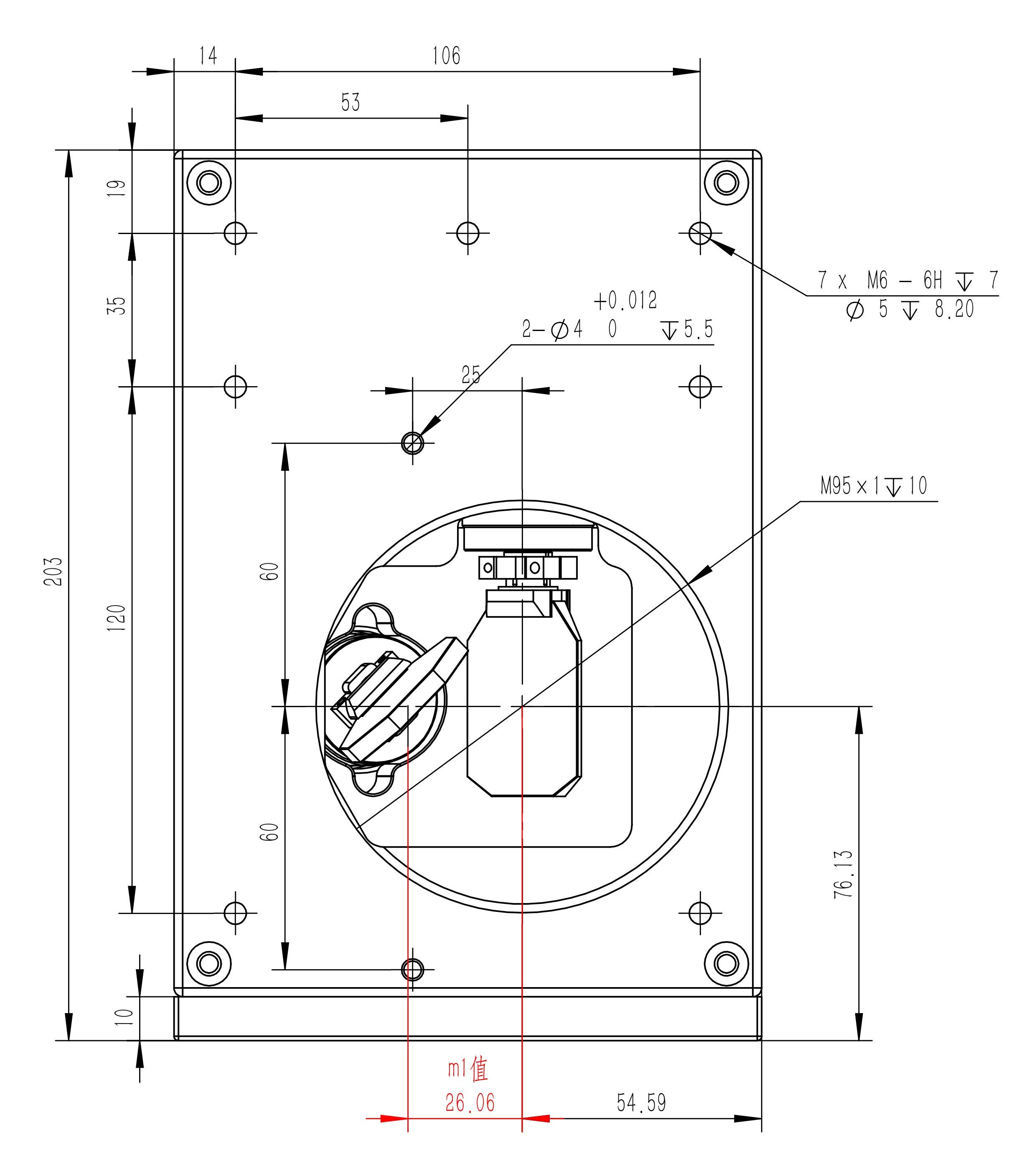

| Input Plate & Mounting Plate | Output Plate |
Specifications
PSH20AW-3D | Specifications |
Maximum allowed average laser power(1) | 1000 W |
Optional adaptable wavelengths(8) | 532nm；1030-1090nm |
Cooling | Water |
Aperture | 20 mm |
Effective scan angle(2) | ± 10° |
Tracking error | ≤0.28ms |
Step response | ≤0.65 ms |
Speed | |
Positioning / Jump(3) | ＜15m/s |
Line scan(3) | ＜15 m/s |
Vector scan(4) | ＜2 m/s |
Good writing quality(3)(5) | 400 cps |
Precision | |
Linearity | 99.9% |
Repeatability | 2 μrad |
Temperature drift | |
Offset | 15 μrad/℃ |
Gain | 15 μrad/℃ |
Long time drift(after 30 mins warm up) | |
Over 8 hours long-term offset drift | 25 μrad |
Over 8 hours long-term gain drift | 40 μrad |
Operating temperature range | 25 ℃ ± 10 ℃ |
Signal interface | Analog:± 10 V or ± 5 V |
Digital:XY2-100 or PRS422 | |
Input power requirement(DC) | ± 15 V @ 5 A Max RMS |
Volume | 134mm×205mm×155mm |
Note:
(1) For laser wavelength 1030-1090 nm.
(2) All angles are in mechanical degrees.
(3) With F-Theta objective f = 160 mm. Speed value varies correspondingly with different focal lengths.
(4) Reapeatibility and temperature drift are measured within this speed.
(5) Single-stroke font with 1 mm height.
(6) Long-term temperature drift is given under an ambient temperature environment of 25°C. and a working load under 500W. Temperature drift testing with high laser power is strictly prohibited. High laser power could induce thermal deformations in both the optical and mechanical systems, making it impossible to differentiate whether the drift is originating from galvanometer scanner itself or due to deformations in the optical and mechanical systems.(7) Appropriate delay parameters must be configured for normal operation of the galvo scanner. Failure to do so may result in abnormal operation of the galvo motor and even irreversible damage to the motor! Please contact PSI engineers regarding relevant parameter configuration issues.
(8) Wavelength customization available. Please consult PSI engineers!
