The PSH30AW is a high-performance galvanometer scanhead designed for laser processing, ideal for applications demanding high precision and fast dynamic response. Its optimized mechanical structure and control algorithms deliver ultra-precise beam positioning and high-speed scanning. Featuring low thermal drift and long-term stability, it supports a wide variety of complex processing technologies.
High Precision：Micron-level accuracy for beam positioning and trajectory control
High Speed：High-speed scanning to boost processing efficiency
Low Thermal Drift：Minimal thermal drift to reduce adverse thermal effects
Long-Term Stability：Consistent repeat accuracy during extended operation, suitable for mass production and long-cycle manufacturing
Application Fields
The PSH30AW 2-axis scanhead is widely applied in additive manufacturing (3D printing), high-precision cutting, ultra-precision welding, multi-head splicing processing, semiconductor material machining, micro-structuring, drilling, on-the-fly processing, scribing and other fields.
Mechanical Drawing（Unit of dimension: mm）

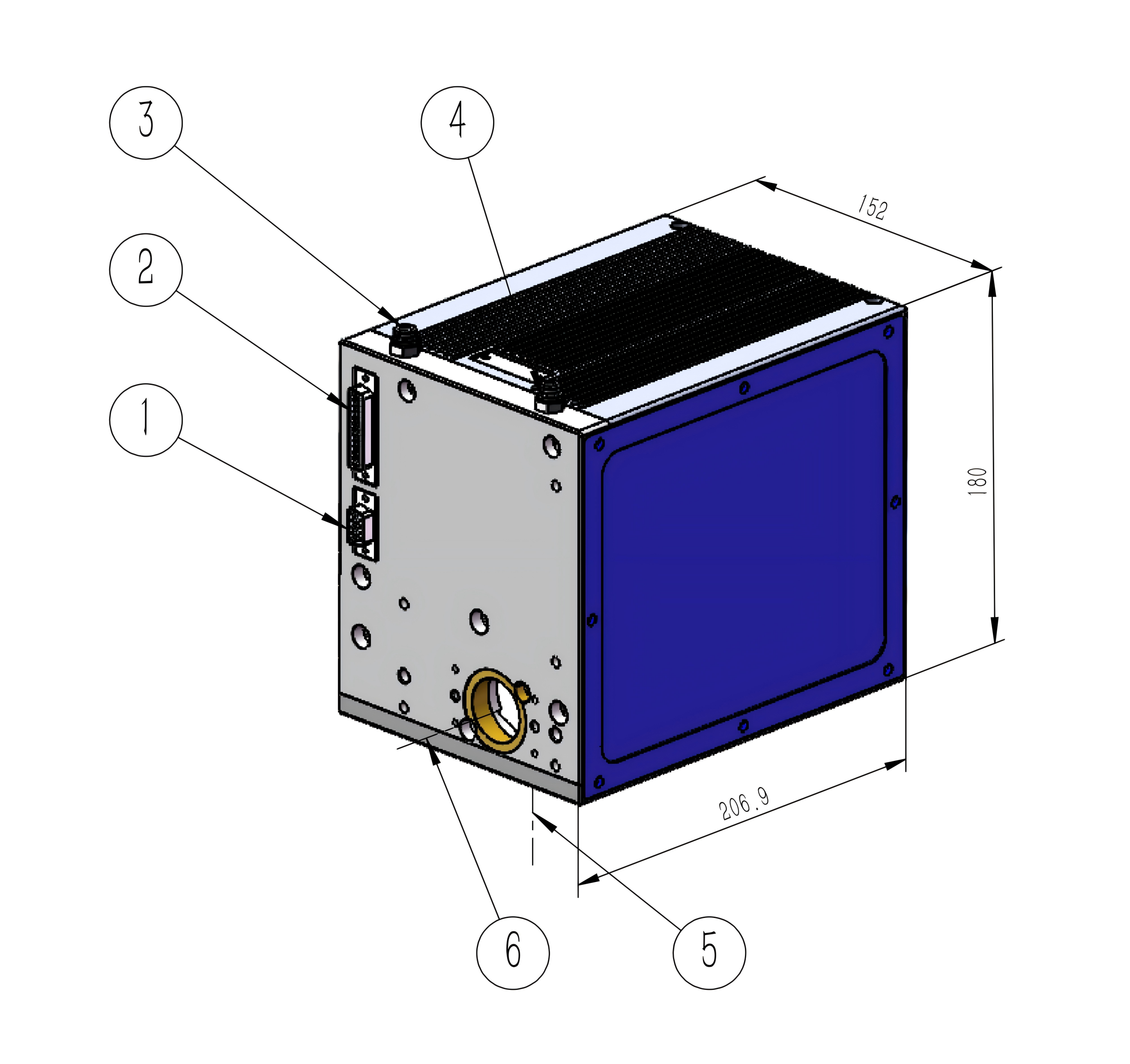

 | Legend: 1.Power Input 2.Electrical Interface (PRS422) 3.Water Cooling Inlet 4.Water Cooling Outlet 5.Laser Outlet 6.Laser Inlet |
| PSH30AW | |
 |  |

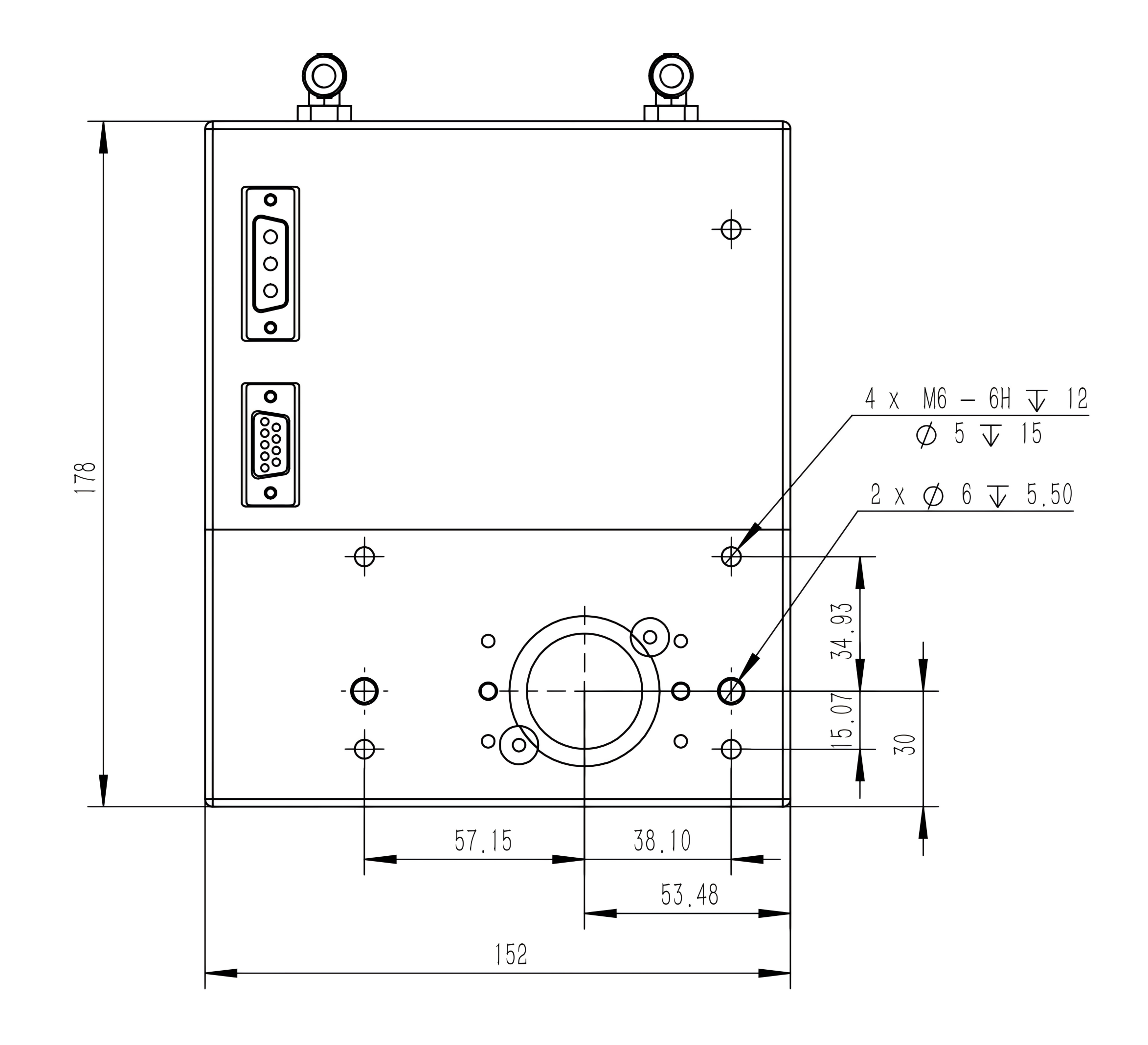

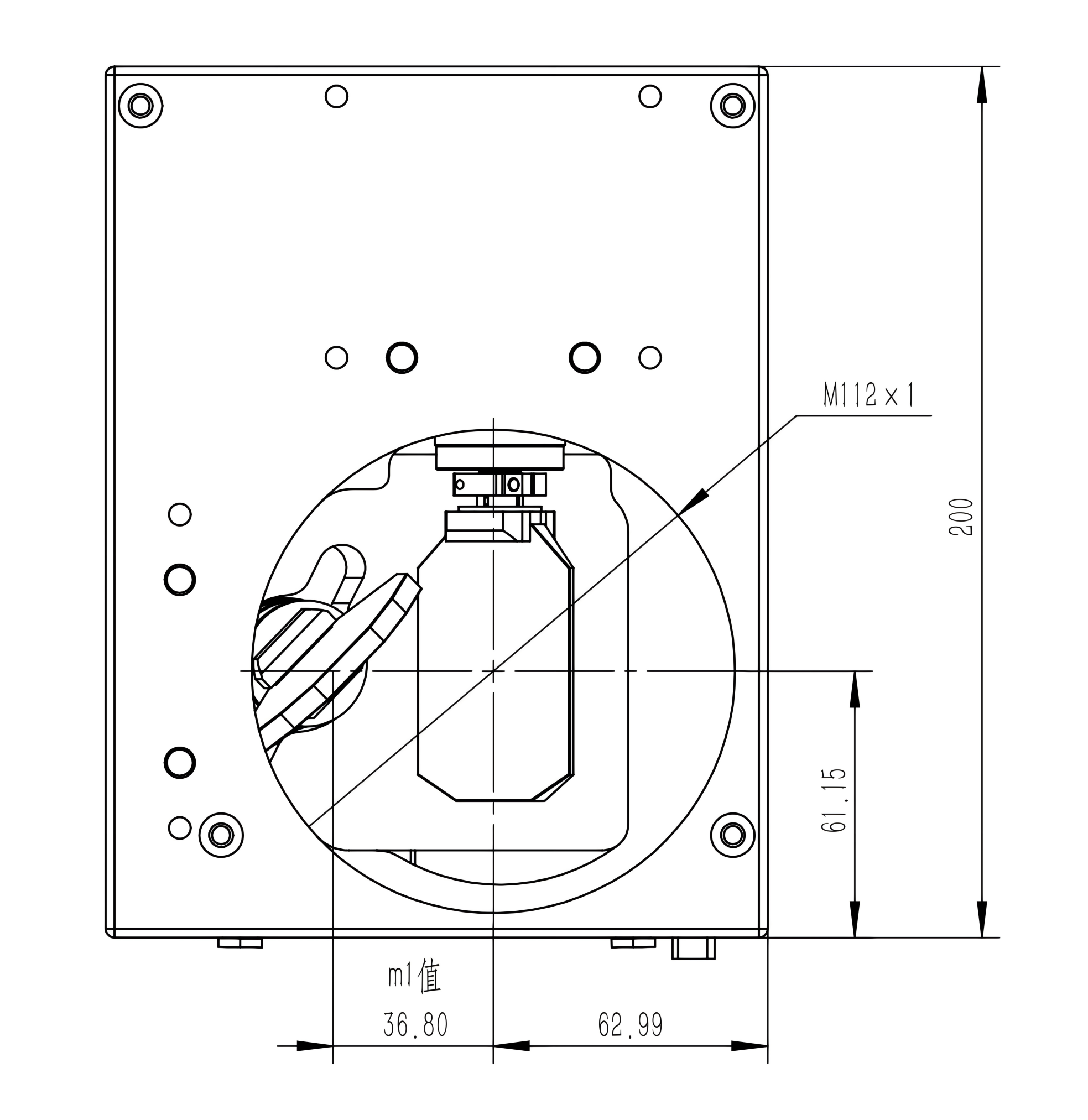

| Input Plate & Mounting Plate | Output Plate |
Specifications
PSH30AW | Specifications |
Maximum allowed average laser power(1) | 3000 W |
Cooling | Water |
Aperture | 30 mm |
Effective scan angle(2) | ± 10° |
Tracking error | ≤0.4ms |
Step response | ≤1 ms |
Speed | |
Positioning / Jump(3) | ＜10 m/s |
Line scan(3) | ＜10 m/s |
Vector scan(4) | ＜1.2 m/s |
Good writing quality(3)(5) | 280 cps |
Precision | |
Linearity | 99.9% |
Repeatability | 2 μrad |
Temperature drift | |
Offset | 20 μrad/℃ |
Gain | 20 μrad/℃ |
Long time drift(after 30 mins warm up) | |
Over 8 hours long-term offset drift | 40 μrad |
Over 8 hours long-term gain drift | 80 μrad |
Operating temperature range | 25 ℃ ± 10 ℃ |
Signal interface | Analog:± 10 V or ± 5 V |
Digital:XY2-100 or PRS422 | |
Input power requirement(DC) | ± 15 V @ 5 A Max RMS |
Volume | 152mm×206.9mm×180mm |
Note:
(1) For laser wavelength 1030-1090 nm.
(2) All angles are in mechanical degrees.
(3) With F-Theta objective f = 160 mm. Speed value varies correspondingly with different focal lengths.
(4) Reapeatibility and temperature drift are measured within this speed.
(5) Single-stroke font with 1 mm height.
(6) Long-term temperature drift is given under an ambient temperature environment of 25°C. and a working load under 500W. Temperature drift testing with high laser power is strictly prohibited. High laser power could induce thermal deformations in both the optical and mechanical systems, making it impossible to differentiate whether the drift is originating from galvanometer scanner itself or due to deformations in the optical and mechanical systems.
