The PSH30MW 2-axis scanhead is compatible with various laser processing applications with power below 3000 W. Equipped with a water cooling system to reduce thermal drift, it delivers long-term reliability, superior dynamic performance and high safety.
Applicable Power: Suitable for laser processing scenarios with power less than 3000
WTemperature Control Design: Integrated water cooling system to minimize thermal 、
driftPerformance & Safety: Features long-term operational reliability, excellent dynamic performance and high safety standards
Application Fields
The PSH30MW 2-axis scanhead is applicable to various laser processing scenarios including laser marking, laser cleaning, drilling, welding, scribing, micro-structuring, material processing and on-the-fly processing.

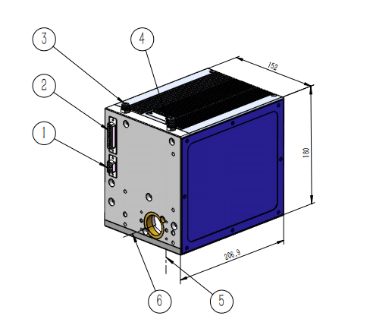

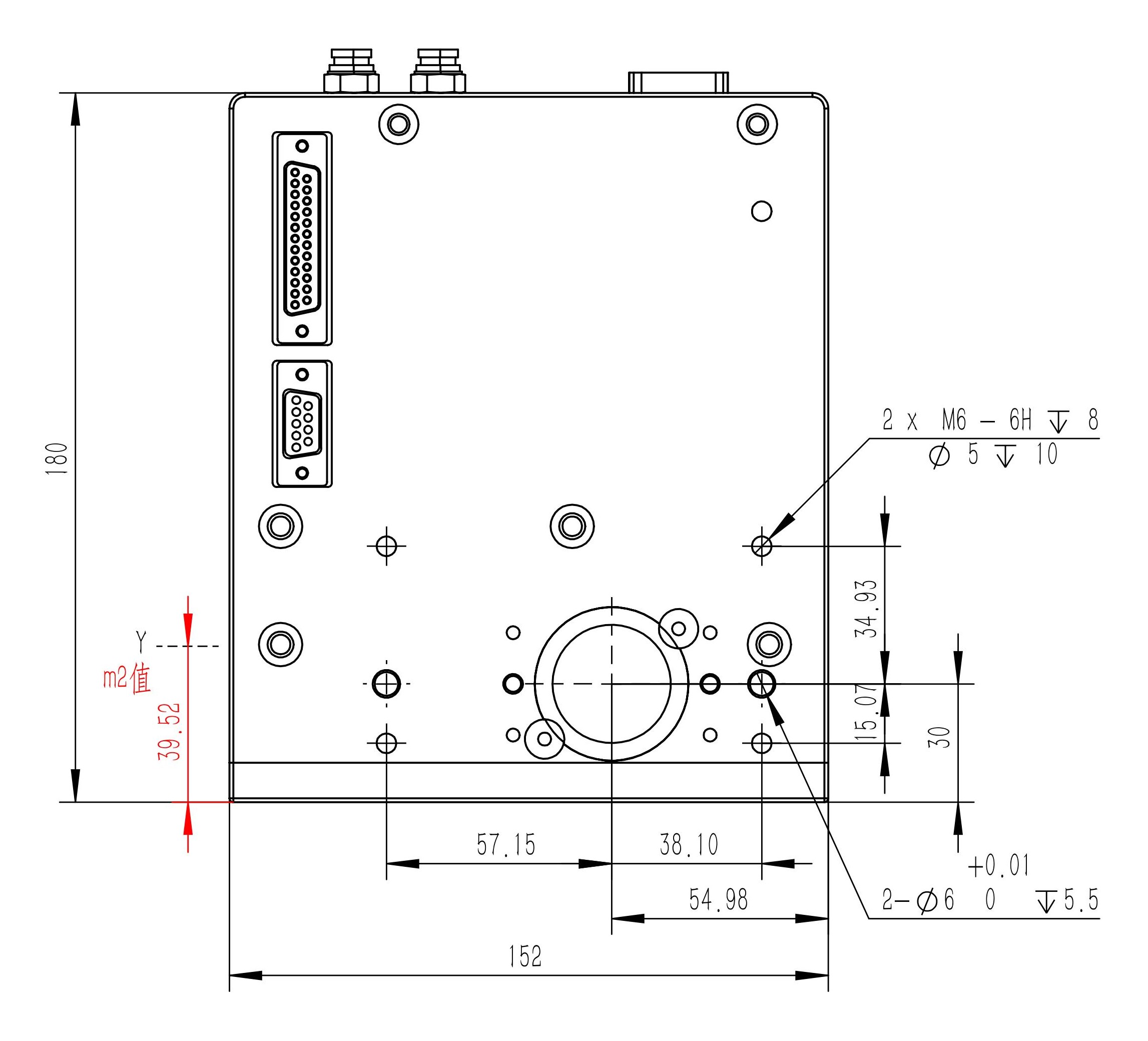

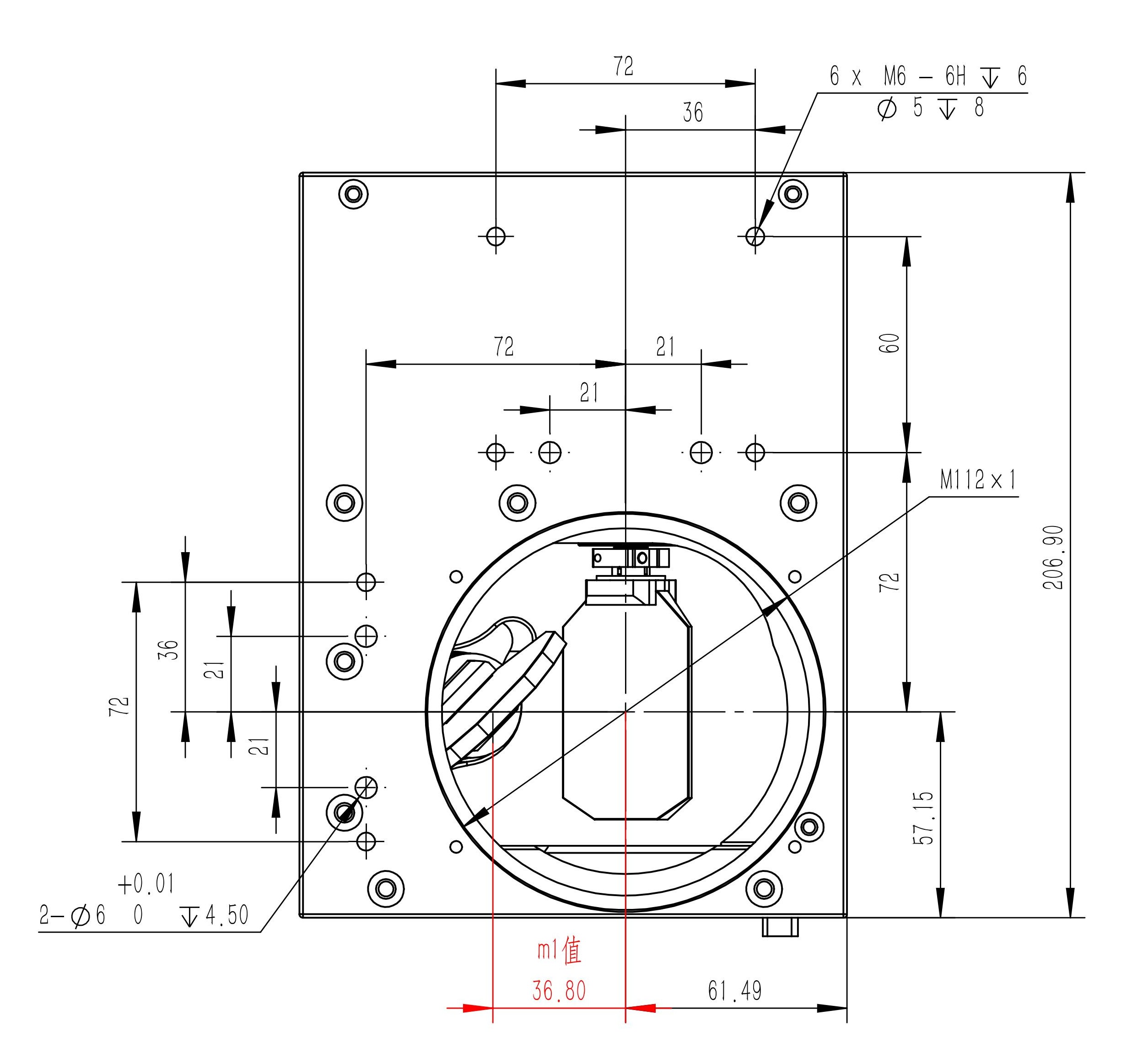

Mechanical Drawing（Unit of dimension: mm）

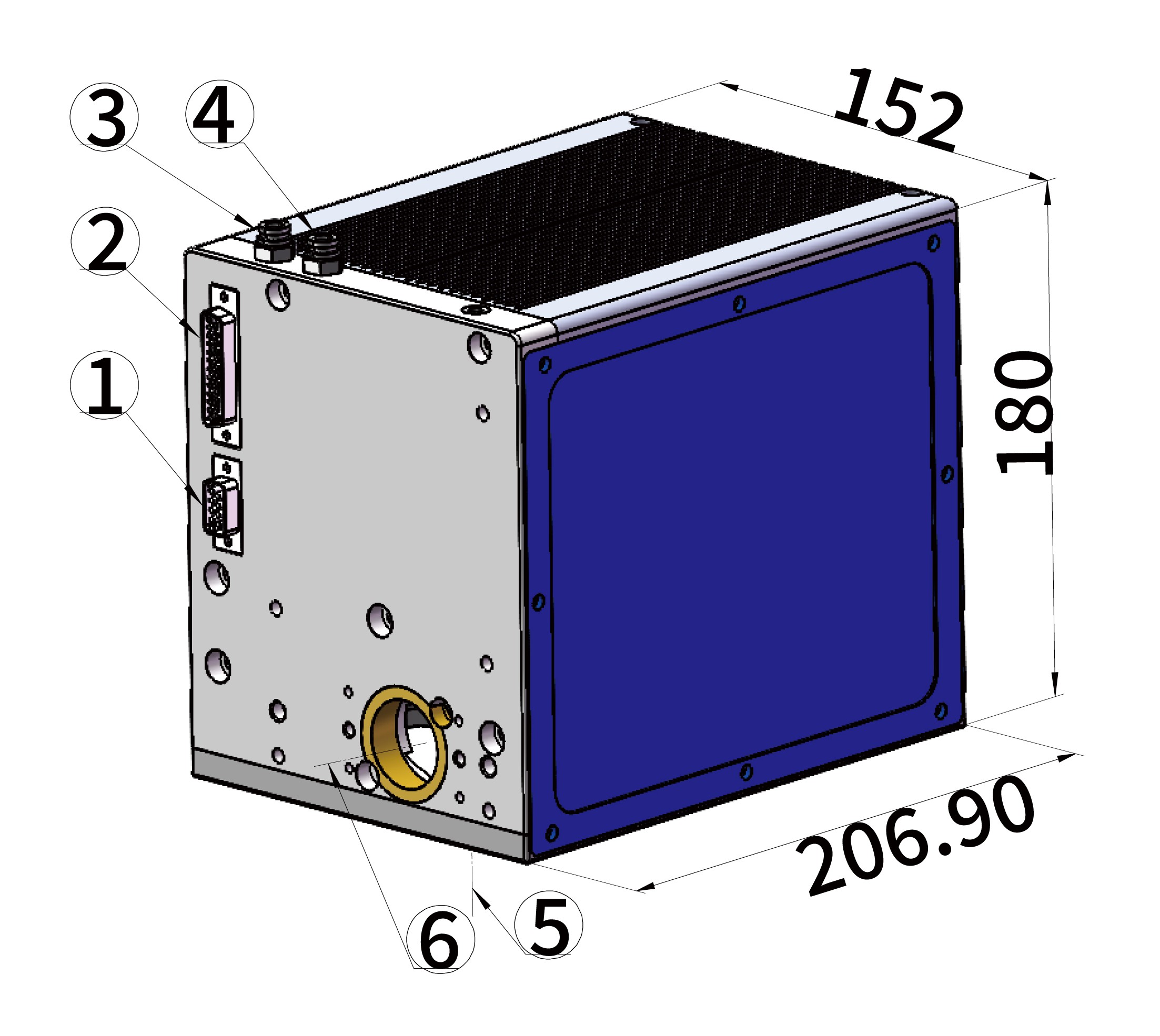

 | Legend: 1.Power Input 2.Electrical Interface (XY2-100) 3.Water Cooling Inlet 4.Water Cooling Outlet 5.Laser Outlet 6.Laser Inlet |
| PSH30MW | |
 |  |

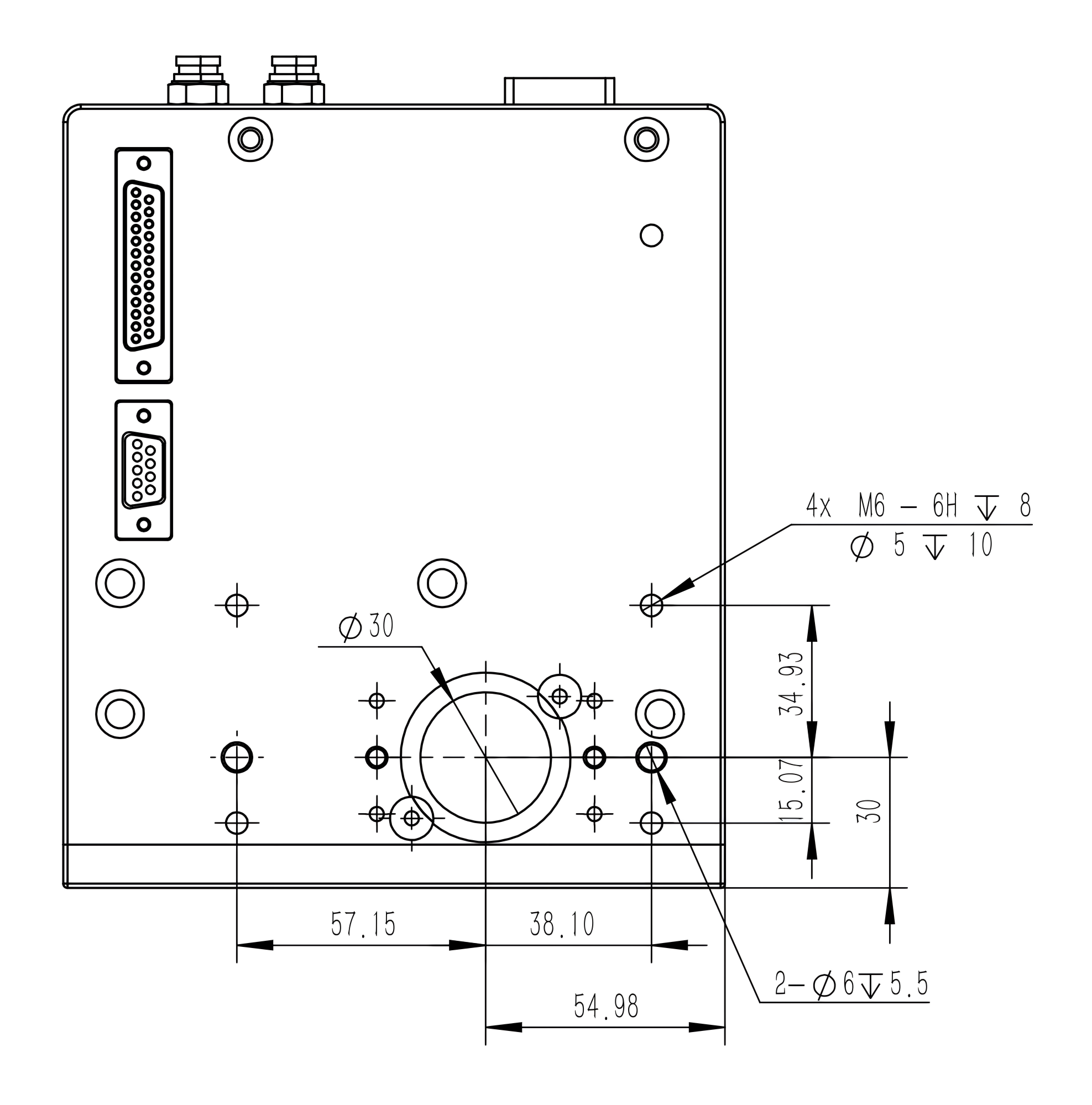

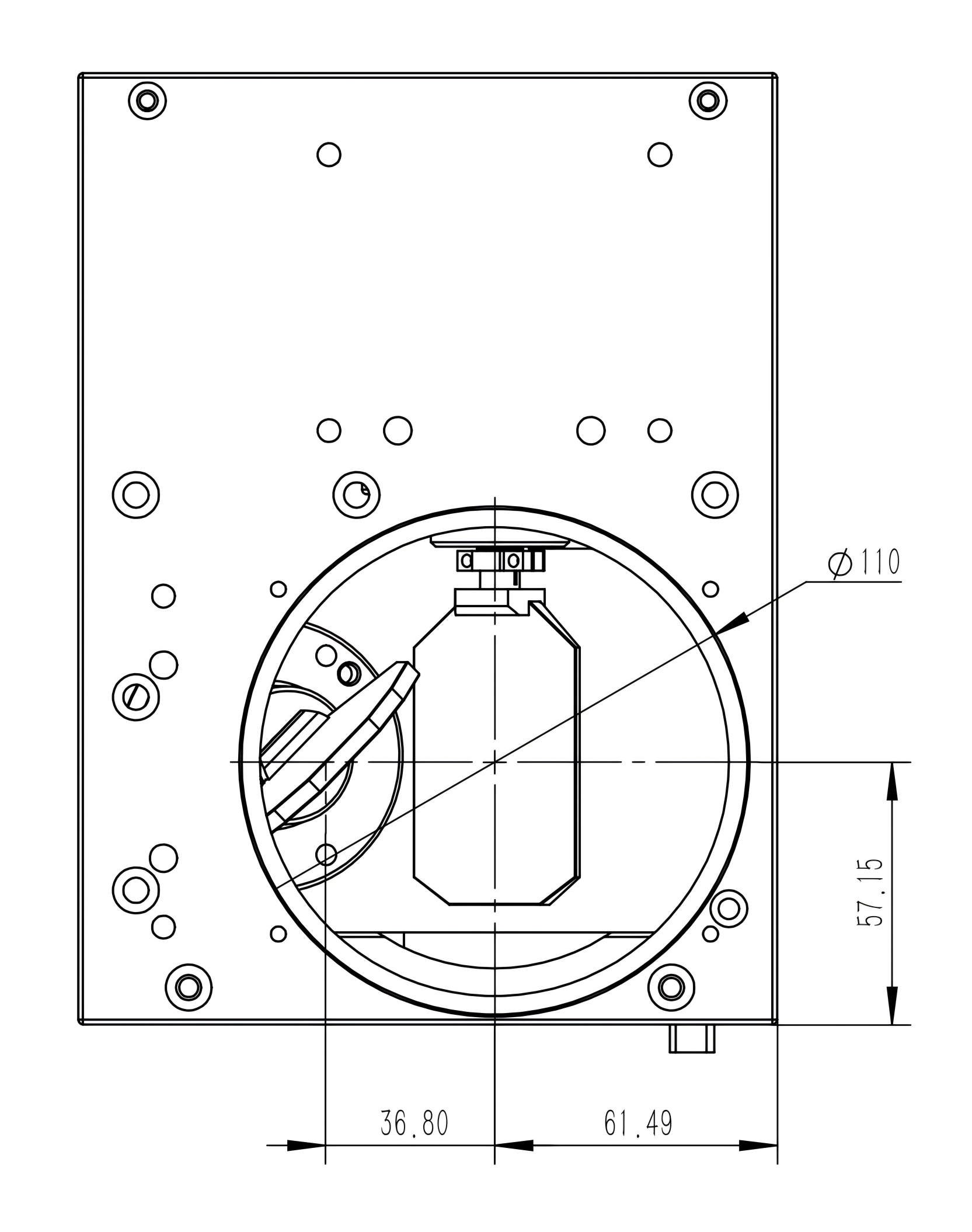

| Input Plate & Mounting Plate | Output Plate |
Specifications
PSH30MW | Specifications |
Maximum allowed average laser power(1) | 3000 W |
Cooling | Water |
Aperture | 30 mm |
Effective scan angle(2) | ± 10° |
Tracking error | ≤0.4ms |
Step response | ≤1 ms |
Speed | |
Positioning / Jump(3) | ＜10 m/s |
Line scan(3) | ＜10 m/s |
Vector scan(4) | ＜1.2 m/s |
Good writing quality(3)(5) | 280 cps |
Precision | |
Linearity | 99.9% |
Repeatability | 2 μrad |
Temperature drift | |
Offset | 20 μrad/℃ |
Gain | 20 μrad/℃ |
Long time drift(after 30 mins warm up) | |
Over 8 hours long-term offset drift | 40 μrad |
Over 8 hours long-term gain drift | 80 μrad |
Operating temperature range | 25 ℃ ± 10 ℃ |
Signal interface | Analog:± 10 V or ± 5 V |
Digital:XY2-100 or PRS422 | |
Input power requirement(DC) | ± 15 V @ 5 A Max RMS |
Volume | 152mm×206.9mm×180mm |
Note:
(1) For laser wavelength 1030-1090 nm.
(2) All angles are in mechanical degrees.
(3) With F-Theta objective f = 160 mm. Speed value varies correspondingly with different focal lengths.
(4) Reapeatibility and temperature drift are measured within this speed.
(5) Single-stroke font with 1 mm height.
