The PSH14ART 2D scan head is designed for laser processing applications demanding ultra-high precision. It delivers performance with linear straightness error below ±0.5 μm and line spacing error below ±1 μm, ideal for high-precision laser trimming and similar processes.
High Precision: High positioning accuracy, suitable for precision machining
High Straightness: Flat trajectory and distinct edges
Low Temperature Drift: Minimal optical path offset with temperature changes
Application Fields
The PSH14ART 2D scan head is applicable to a wide range of fields, including precision machining, laser cutting, laser additive manufacturing (3D printing), high-speed and high-precision laser marking, laser trimming, silver paste etching, solar wafer scribing and scientific research.
Mechanical Drawings（Dimension in mm）

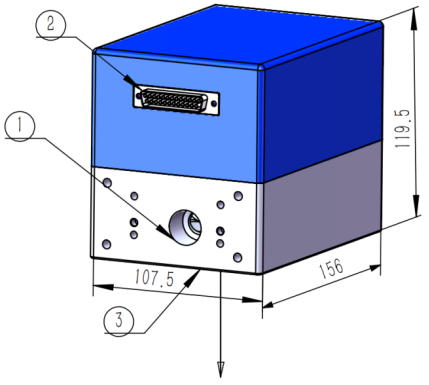

 | Legend: 1.Beam in 2.Electrical interface (XY2-100, Power in) 3.Beam out |
| PSH14ART Scan Head | |
 |  |

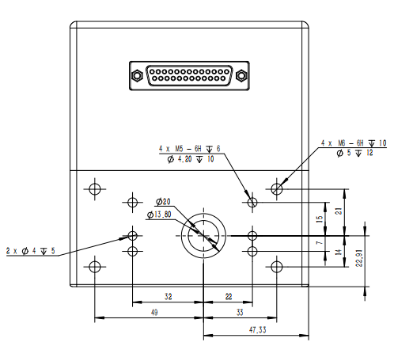

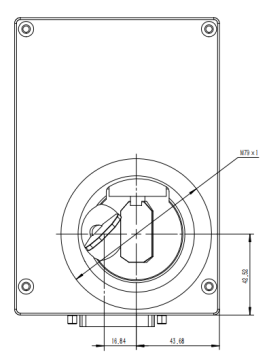

| Beam In & Mounting Bracket | Beam Exit Side |
Specifications
PSH14ART | Specifications |
Maximum allowed average laser power(1) | 100 W |
Optional adaptable wavelengths(8) | 355nm；532nm；1030-1090nm |
Aperture | 14 mm |
Effective scan angle(2) | ± 10° |
Tracking error | ≤0.4 ms |
Step response | ≤1 ms |
Speed | |
Positioning / Jump(3) | ＜10 m/s |
Line scan(3) | ＜10 m/s |
Vector scan(4) | ＜1.2 m/s |
Good writing quality(3)(5) | 300 cps |
Precision | |
Linearity | 99.9 % |
Repeatability | 2 μrad |
Temperature drift | |
Offset | 15 μrad/℃ |
Gain | 15 μrad/℃ |
Long time drift(after 30 mins warm up) | |
Over 8 hours long-term offset drift | 25 μrad |
Over 8 hours long-term gain drift | 40 μrad |
Operating temperature range | 25 ℃ ± 10 ℃ |
Signal interface | Analog:± 10 V or ± 5 V |
Digital:XY2-100 or PRS422 | |
Input power requirement(DC) | ± 15 V @ 5 A Max RMS |
Volume | 107.5mm×156mm×119.5mm |
Note:
(1) For laser wavelength 1030-1090 nm.
(2) All angles are in mechanical degrees.
(3) With F-Theta objective f = 160 mm. Speed value varies correspondingly with different focal lengths.
(4) Reapeatibility and temperature drift are measured within this speed.
(5) Single-stroke font with 1 mm height.
(6) The long-term thermal drift test shall be carried out under a constant ambient temperature of approximately 25 °C, with the laser power kept below 500 W. High laser power shall not be adopted for thermal drift testing. Under high laser power, thermal distortion will occur in both the optical system and mechanical system. Consequently, it cannot be determined whether the measured drift originates from the inherent drift of the galvo scanner or from thermal deformation of the optical and mechanical systems.
(7) Appropriate delay parameters must be configured for normal operation of the galvo scanner. Failure to do so may result in abnormal operation of the galvo motor and even irreversible damage to the motor! Please contact PSI engineers regarding relevant parameter configuration issues.
(8) Wavelength customization available. Please consult PSI engineers!
