The PSH20AW is engineered for laser processing applications with extremely stringent scanning requirements. It flexibly adapts to diverse working scenarios, featuring high precision, high speed, low thermal drift and excellent long-term stability.
High Precision: Fully meets demands of precision machining
High Speed: Enables rapid jump and scanning motions to boost productivity
Low Thermal Drift: Minimal thermal shift even during extended operation
Flexible Compatibility: Supports multiple scenarios and various interfaces for fast integration
Application Fields
The PSH20AW is engineered for laser processing applications that demand superior scanning precision. It is widely compatible with various scenarios, including high-precision cutting, multi-head splicing processing, semiconductor material machining, micro-structure fabrication, drilling, cladding, flying marking, scribing, and solar industry applications.

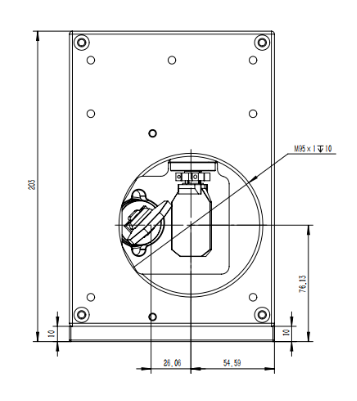

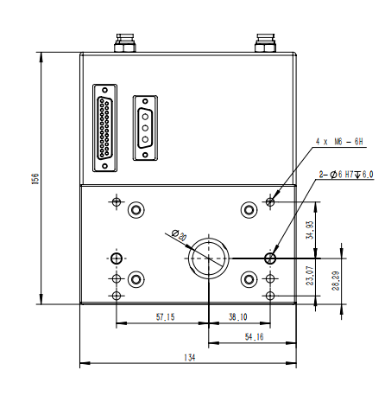

Mechanical Drawing（Unit of dimension: mm）

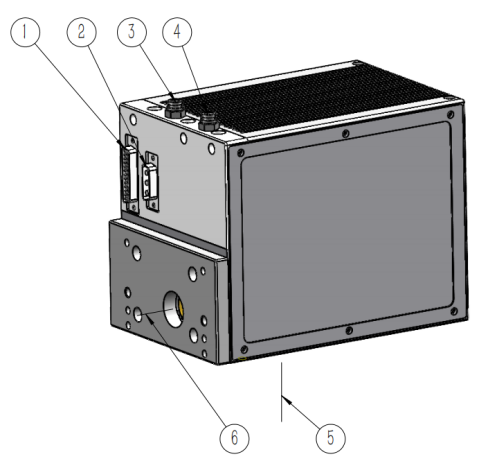

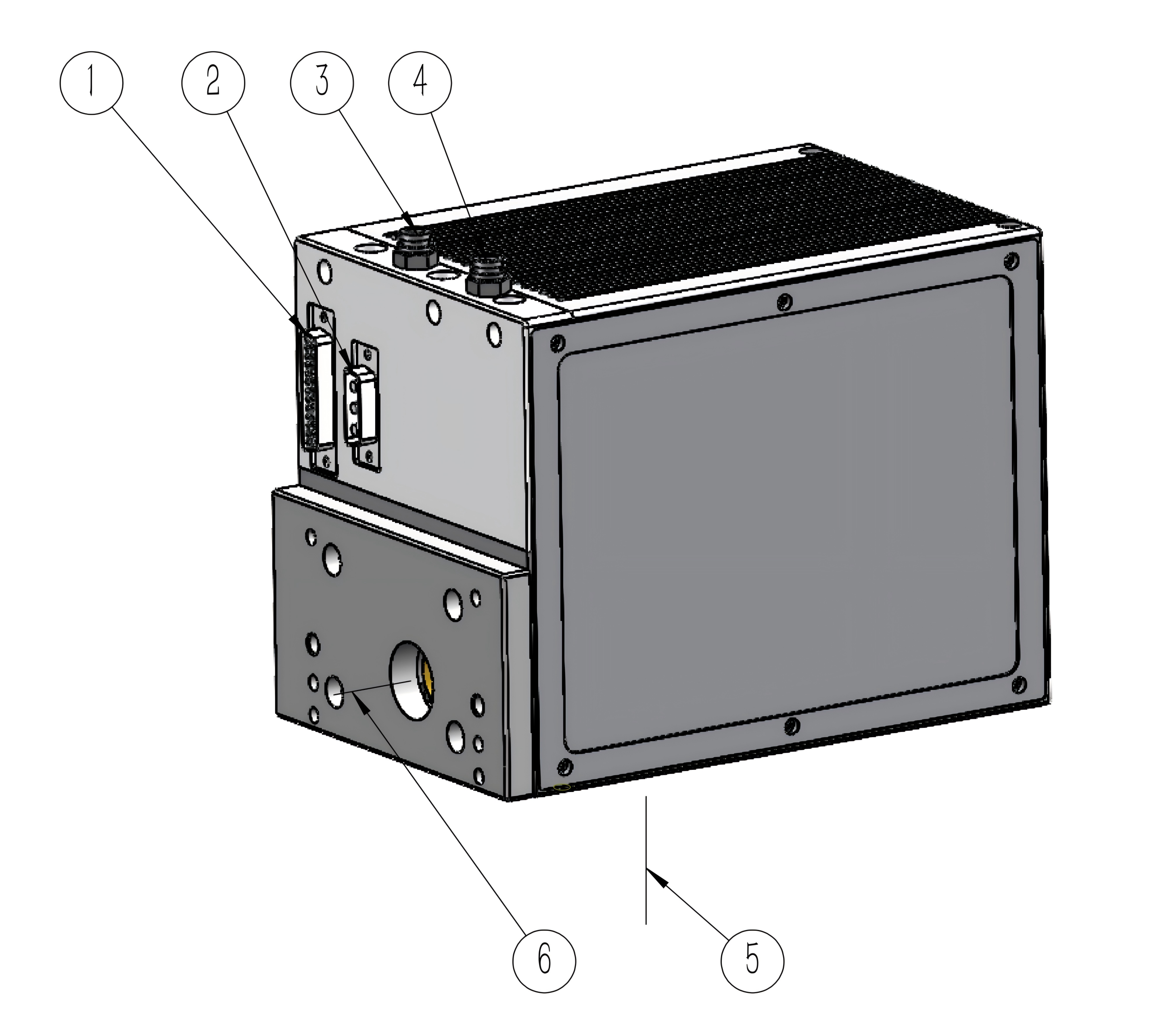

 | Legend: 1.Laser Inlet 2.Electrical Interface (XY2-100) 3.Power Input 4.Water Cooling Inlet 5.Water Cooling Outlet 6.Laser Outlet |
| PSH20AW | |
 |  |
| Input Plate & Mounting Plate | Output Plate |
Specifications
PSH20AW | Specifications |
Maximum allowed average laser power(1) | 1000 W |
Optional adaptable wavelengths(8) | 532nm；1030-1090nm |
Cooling | Water |
Aperture | 20 mm |
Effective scan angle(2) | ± 10° |
Tracking error | ≤0.22ms |
Step response | ≤0.6 ms |
Speed | |
Positioning / Jump(3) | ＜25 m/s |
Line scan(3) | ＜25 m/s |
Vector scan(4) | ＜3.5 m/s |
Good writing quality(3)(5) | 500 cps |
Precision | |
Linearity | 99.9 % |
Repeatability | 2 μrad |
Temperature drift | |
Offset | 15 μrad/℃ |
Gain | 15 μrad/℃ |
Long time drift(after 30 mins warm up) | |
Over 8 hours long-term offset drift | 25μrad |
Over 8 hours long-term gain drift | 40μrad |
Operating temperature range | 25 ℃ ± 10 ℃ |
Signal interface | Analog:± 10 V or ± 5 V |
Digital:XY2-100 or PRS422 | |
Input power requirement(DC) | ± 15 V @ 5 A Max RMS |
Volume | 134mm×205mm×155mm |
Note:
(1) For laser wavelength 1030-1090 nm.
(2) All angles are in mechanical degrees.
(3) With F-Theta objective f = 160 mm. Speed value varies correspondingly with different focal lengths.
(4) Reapeatibility and temperature drift are measured within this speed.
(5) Single-stroke font with 1 mm height.
(6) Long-term temperature drift is given under an ambient temperature environment of 25°C. and a working load under 500W. Temperature drift testing with high laser power is strictly prohibited. High laser power could induce thermal deformations in both the optical and mechanical systems, making it impossible to differentiate whether the drift is originating from galvanometer scanner itself or due to deformations in the optical and mechanical systems.
(7) Appropriate delay parameters must be configured for normal operation of the galvo scanner. Failure to do so may result in abnormal operation of the galvo motor and even irreversible damage to the motor! Please contact PSI engineers regarding relevant parameter configuration issues.
(8) Wavelength customization available. Please consult PSI engineers!
