The PSH14RT 2D scan head is a galvanometer specifically developed for laser trimming applications. It is suitable for trimming scenarios where the linear straightness error is less than ±1.5 μm and the line spacing error is less than ±1.5 μm.
Compact Size: Space-saving structure for easy installation
Light Weight: Lightweight design to reduce load
High Speed: Fast response for improved efficiency
Cost-effective:Low maintenance costs.
Application Fields
The PSH14RT 2D scan head is widely applied in precision machining, laser cutting, laser additive manufacturing (3D printing), high-speed and high-precision laser marking, laser trimming, silver paste etching, solar wafer scribing, scientific research and many other fields.
Mechanical Drawings（Dimension in mm）

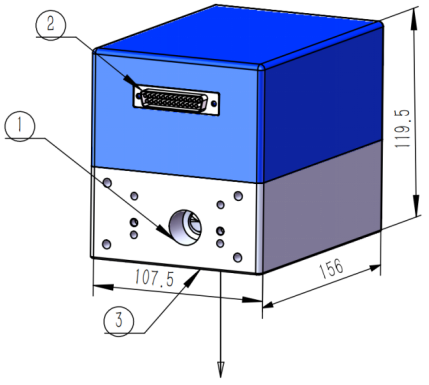

 | Legend: 1.Beam in 2.Electrical interface (XY2-100, Power in) 3.Beam out |
| PSH14RT Scan Head | |
 |  |

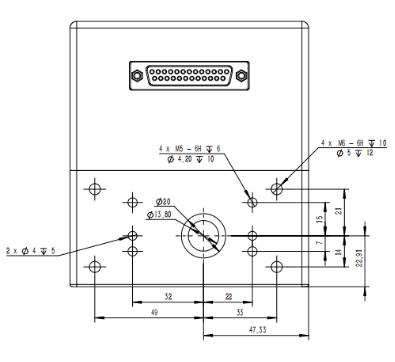

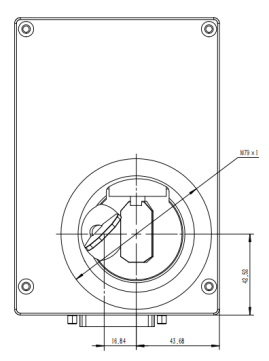

| Beam In & Mounting Bracket | Beam Exit Side |
Specifications
PSH14RT | Specifications |
Maximum allowed average laser power(1) | 500 W |
Optional adaptable wavelengths(8) | 355nm；532nm；1030-1090nm |
Aperture | 14 mm |
Effective scan angle(2) | ± 10° |
Tracking error | ≤0.25 ms |
Step response | ≤0.5 ms |
Speed | |
Positioning / Jump(3) | ＜12 m/s |
Line scan(3) | ＜12 m/s |
Vector scan(4) | ＜2 m/s |
Good writing quality(3)(5) | 600 cps |
Precision | |
Linearity | 99.9 % |
Repeatability | 2 μrad |
Temperature drift | |
Offset | 20 μrad/℃ |
Gain | 20 μrad/℃ |
Long time drift(after 30 mins warm up) | |
Over 8 hours long-term offset drift | 40 μrad |
Over 8 hours long-term gain drift | 60 μrad |
Operating temperature range | 25 ℃ ± 10 ℃ |
Signal interface | Analog:± 10 V or ± 5 V |
Digital:XY2-100 or PRS422 | |
Input power requirement(DC) | ± 15 V @ 5 A Max RMS |
Volume | 107.5mm×156mm×119.5mm |
Note:
(1) For laser wavelength 1030-1090 nm.
(2) All angles are in mechanical degrees.
(3) With F-Theta objective f = 160 mm. Speed value varies correspondingly with different focal lengths.
(4) Reapeatibility and temperature drift are measured within this speed.
(5) Single-stroke font with 1 mm height.
(6) The long-term thermal drift test shall be carried out under a constant ambient temperature of approximately 25 °C, with the laser power kept below 500 W. High laser power shall not be adopted for thermal drift testing. Under high laser power, thermal distortion will occur in both the optical system and mechanical system. Consequently, it cannot be determined whether the measured drift originates from the inherent drift of the galvo scanner or from thermal deformation of the optical and mechanical systems.
(7) Appropriate delay parameters must be configured for normal operation of the galvo scanner. Failure to do so may result in abnormal operation of the galvo motor and even irreversible damage to the motor! Please contact PSI engineers regarding relevant parameter configuration issues.
(8) Wavelength customization available. Please consult PSI engineers!
