The PSH14 2D scanning head features a compact and lightweight design with excellent cost performance and long-term operational reliability. It also delivers low temperature drift, high precision and superior dynamic performance.
Easy Installation: Compact size, dustproof and anti-interference
Low Temperature Drift: Minimal thermal drift and strong environmental adaptability
High Precision: Accurate positioning to effectively improve processing yield
High Dynamic Performance: Fast response and stable scanning
Application Fields
The PSH14 2D scanning head is flexibly applicable to various laser processing tasks. It is especially suitable for high-demand scenarios including precision marking, cladding, laser engraving, semiconductor material processing, microstructure machining, on-the-fly processing, additive manufacturing (3D printing) and laser cutting.
Mechanical Drawing（Unit of dimension: mm）

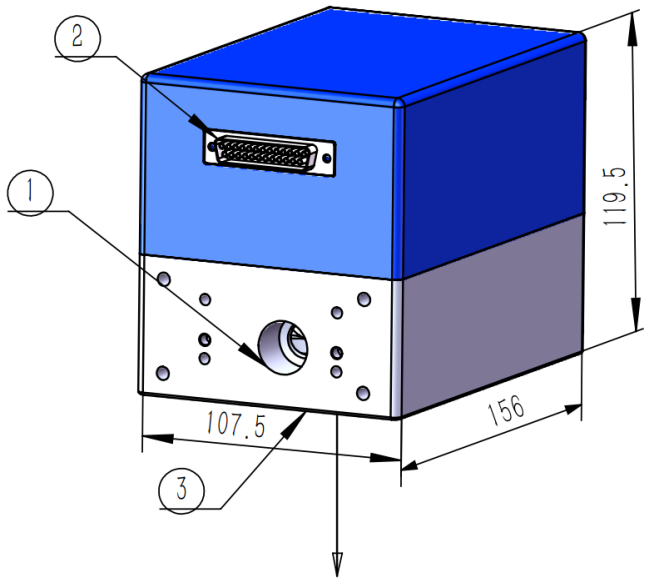

 | Legend: 1.Laser Inlet 2.Electrical Interface (XY2-100, Power Input) 3.Laser Outlet |
| PSH14 | |
 |  |

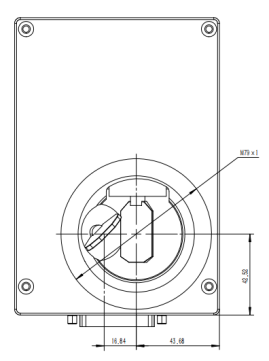

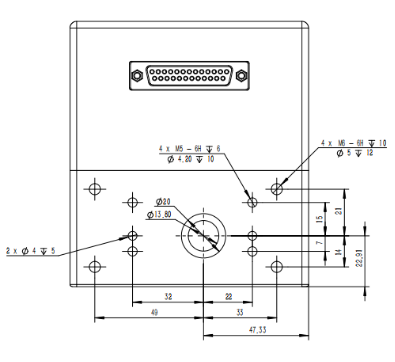

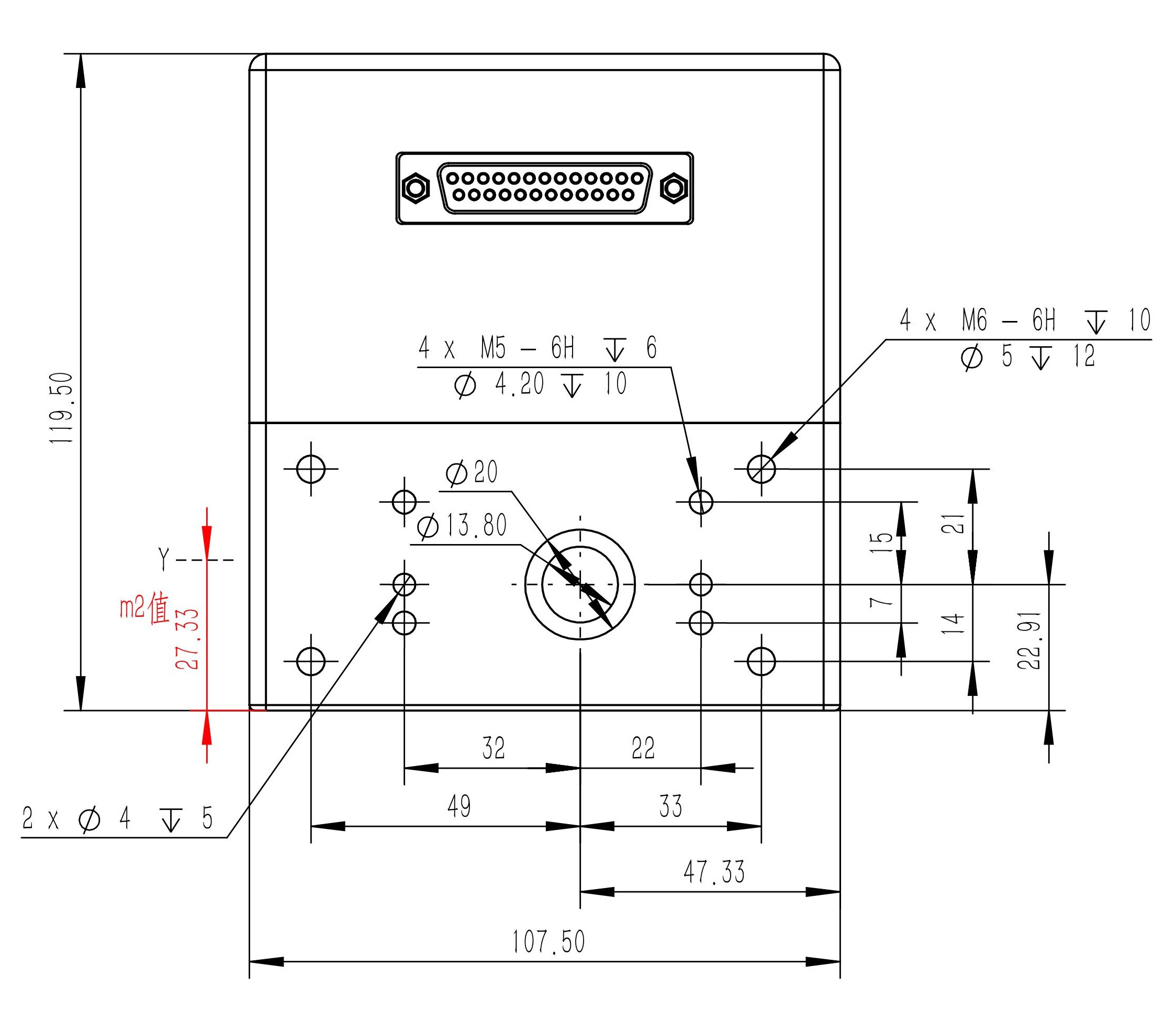

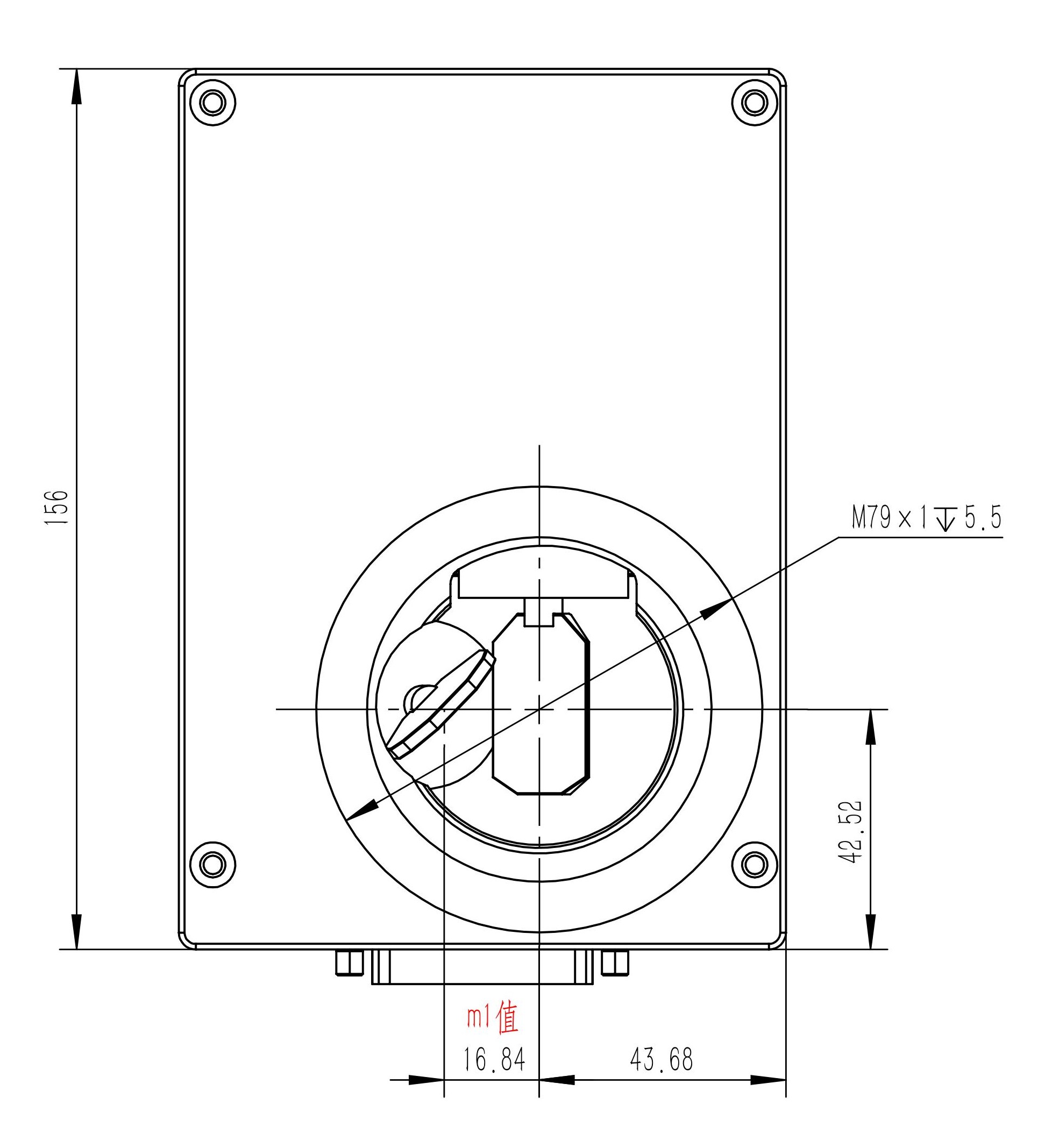

| Input Plate & Mounting Plate | Output Plate |
Specifications
PSH14 | Specifications |
Maximum allowed average laser power(1) | 500 W |
Optional adaptable wavelengths(8) | 355nm；532nm；1030-1090nm |
Aperture | 14 mm |
Effective scan angle(2) | ± 10° |
Tracking error | ≤0.15 ms |
Step response | ≤0.36 ms |
Speed | |
Positioning / Jump(3) | ＜20 m/s |
Line scan(3) | ＜20 m/s |
Vector scan(4) | ＜3 m/s |
Good writing quality(3)(5) | 700 cps |
Precision | |
Linearity | 99.9 % |
Repeatability | 2 μrad |
Temperature drift | |
Offset(μrad/℃) | 20 |
Gain(μrad/℃) | 20 |
Long time drift(after 30 mins warm up) | |
Over 8 hours long-term offset drift(μrad) | 40 |
Over 8 hours long-term gain drift(μrad) | 80 |
Operating temperature range | 25 ℃ ± 10 ℃ |
Signal interface | Analog:± 10 V or ± 5 V |
Digital:XY2-100 or PRS422 | |
Input power requirement(DC) | ± 15 V @ 5 A Max RMS |
Volume | 156mm x 107.5mm x 119.5mm |
Note:
(1) For laser wavelength 1030-1090 nm.
(2) All angles are in mechanical degrees.
(3) With F-Theta objective f = 160 mm. Speed value varies correspondingly with different focal lengths.
(4) Reapeatibility and temperature drift are measured within this speed.
(5) Single-stroke font with 1 mm height.
(6) The long-term thermal drift test shall be carried out under a constant ambient temperature of approximately 25 °C, with the laser power kept below 500 W. High laser power shall not be adopted for thermal drift testing. Under high laser power, thermal distortion will occur in both the optical system and mechanical system. Consequently, it cannot be determined whether the measured drift originates from the inherent drift of the galvo scanner or from thermal deformation of the optical and mechanical systems.
(7) Appropriate delay parameters must be configured for normal operation of the galvo scanner. Failure to do so may result in abnormal operation of the galvo motor and even irreversible damage to the motor! Please contact PSI engineers regarding relevant parameter configuration issues.
(8) Wavelength customization available. Please consult PSI engineers!
