The PSH20HW 2D scanning head is engineered exclusively for high-power laser processing applications. It delivers full dynamic performance under laser power up to 2000 W. Equipped with a water cooling system, highly sealed housing and laser anti-reflection structure, it ensures safe and stable equipment operation.
High Power Compatibility: Supports laser power up to 2000 W
Water-Cooled Heat Dissipation: Adopts water cooling system for efficient heat dissipation
Sealed Structure: Sealed housing to maintain perfect air tightness
Anti-Reflection Protection: Laser anti-reflection design for enhanced operational safety
Application Fields
The PSH20HW 2D scanning head is engineered for high-power laser processing applications, and is widely adopted in high-power laser marking, laser cleaning, drilling, welding, scribing, material processing, flying marking and other related fields.
Mechanical Drawing

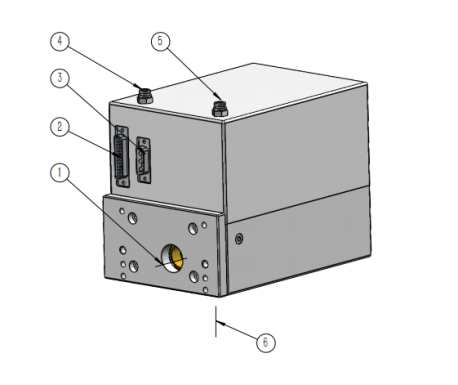

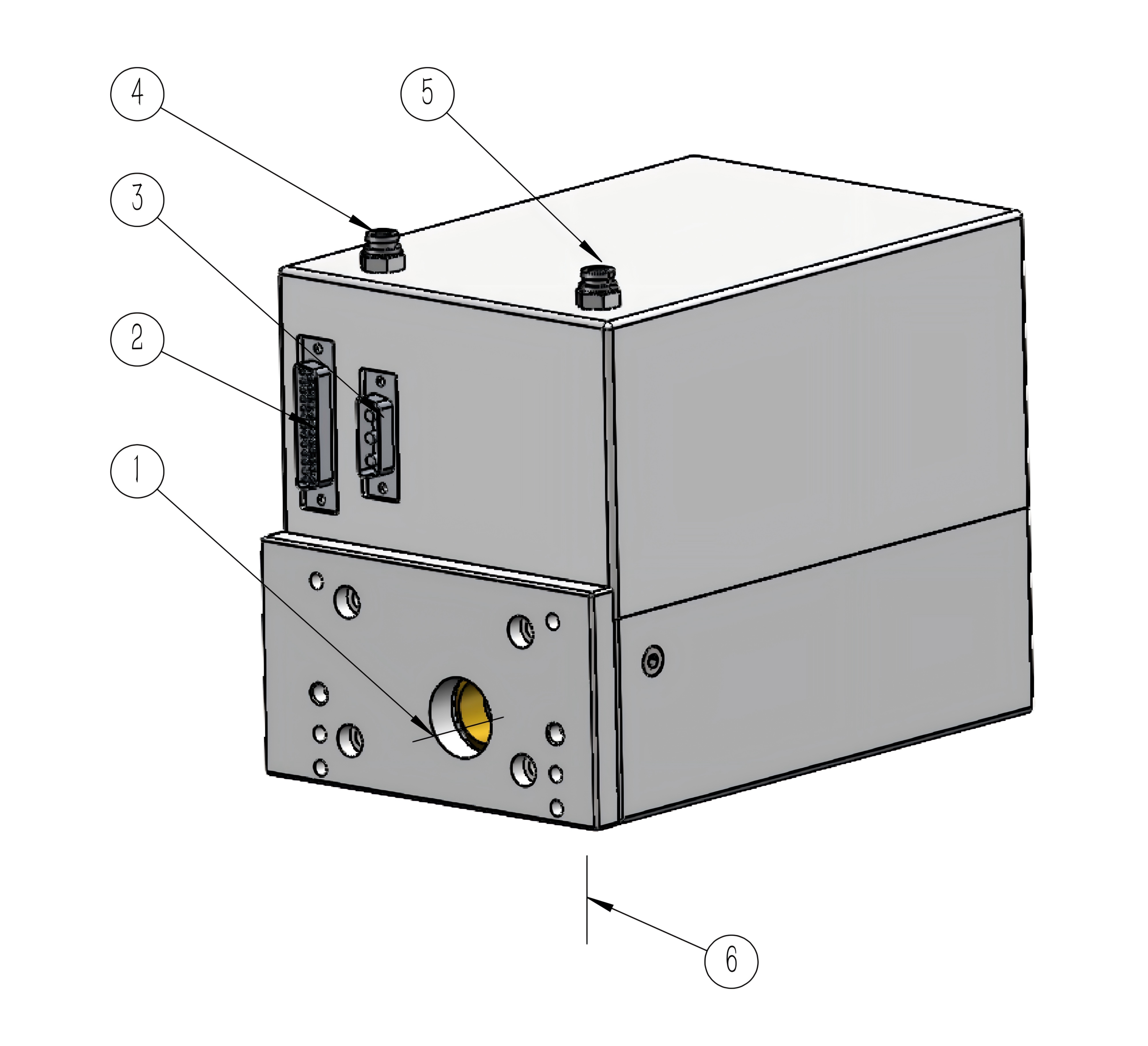

| Legend: 1.Laser Inlet 2.Electrical Interface (XY2-100) 3.Power Input 4.Water Cooling Inlet 5.Water Cooling Outlet 6.Laser Outlet (Unit: mm) |
PSH20HW scanning head | |
|
|

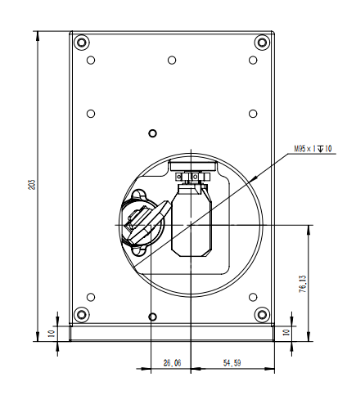

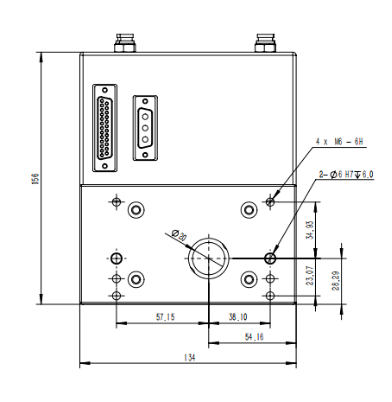

Input Plate & Mounting Plate | Output Plate |
Specifications
PSH20HW | Specifications |
Maximum allowed average laser power(1) | 2000 W |
Cooling | Water |
Aperture | 20 mm |
Effective scan angle(2) | ± 10° |
Tracking error | ≤0.28ms |
Step response | ≤0.65ms |
Speed | |
Positioning / Jump(3) | ＜15 m/s |
Line scan(3) | ＜15 m/s |
Vector scan(4) | ＜2 m/s |
Good writing quality(3)(5) | 400 cps |
Precision | |
Linearity | 99.9% |
Repeatability | 2 μrad |
Temperature drift | |
Offset | 20 μrad/℃ |
Gain | 20 μrad/℃ |
Long time drift(after 30 mins warm up) | |
Over 8 hours long-term offset drift | 40 μrad |
Over 8 hours long-term gain drift | 80 μrad |
Operating temperature range | 25 ℃ ± 10 ℃ |
Signal interface | Analog:± 10 V or ± 5 V |
Digital:XY2-100 or PRS422 | |
Input power requirement(DC) | ± 15 V @ 5 A Max RMS |
Volume | 134mm×195mm×155mm |
Note:
(1) For laser wavelength 1030-1090 nm.
(2) All angles are in mechanical degrees.
(3) With F-Theta objective f = 160 mm. Speed value varies correspondingly with different focal lengths.
(4) Reapeatibility and temperature drift are measured within this speed.
(5) Single-stroke font with 1 mm height.
(6) Long-term temperature drift is given under an ambient temperature environment of 25°C. and a working load under 500W. Temperature drift testing with high laser power is strictly prohibited. High laser power could induce thermal deformations in both the optical and mechanical systems, making it impossible to differentiate whether the drift is originating from galvanometer scanner itself or due to deformations in the optical and mechanical systems.
