The PSH20 2D laser scanning head features a compact, dustproof and robust structure with easy installation and precise positioning, alongside strong anti-interference capability. Its heat dissipation system is optimized specifically for high-power laser applications to guarantee long-term stable operation, meeting high-power laser welding demands that require high precision and low thermal drift.
High Cost Performance: Premium quality at competitive prices with low maintenance costs
Low Thermal Drift: High-efficiency heat dissipation design delivers outstanding thermal stability
High Precision: Meets all precision machining requirements
Excellent Dynamic Performance: High acceleration and low-latency response
Application Fields
The PSH20 2D scanning head is compatible with a wide range of high-precision laser processing working conditions. It can be applied to laser marking, laser cleaning, drilling, welding, scribing, micro-structure machining, material processing, flying marking and other scenarios, making it an ideal option for high-standard laser processing.
Mechanical Drawing

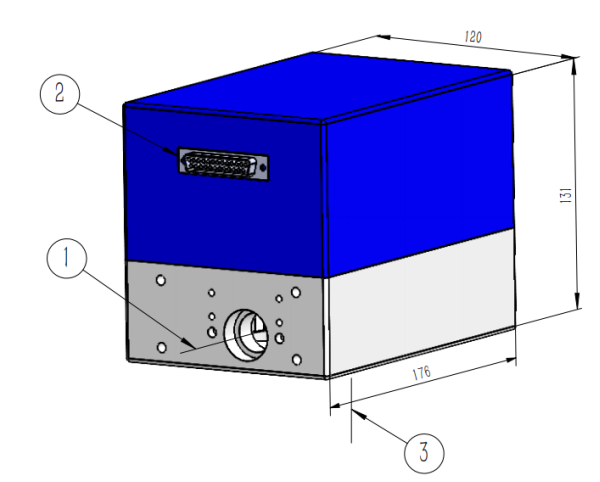

| Legend: 1.Laser Inlet 2.Electrical Interface (XY2-100) 3.Laser Outlet (Unit: mm) |
PSH20 scanning head | |
|
|

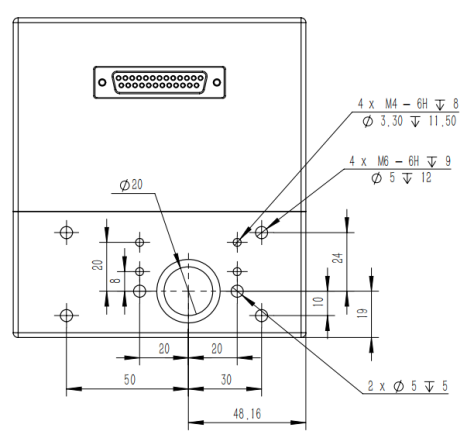

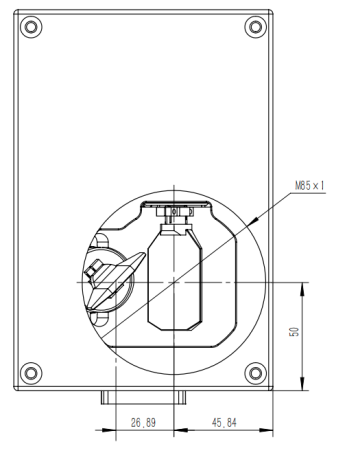

Input Plate & Mounting Plate | Output Plate |
Specifications
PSH20 | Specifications |
Maximum allowed average laser power(1) | 1000 W |
Aperture | 20 mm |
Effective scan angle(2) | ± 10° |
Tracking error | ≤0.28ms |
Step response | ≤0.65 ms |
Speed | |
Positioning / Jump(3) | ＜15 m/s |
Line scan(3) | ＜15 m/s |
Vector scan(4) | ＜2 m/s |
Good writing quality(3)(5) | 400 cps |
Precision | |
Linearity | 99.9 % |
Repeatability | 2 μrad |
Temperature drift | |
Offset | 20 μrad/℃ |
Gain | 20 μrad/℃ |
Long time drift(after 30 mins warm up) | |
Over 8 hours long-term offset drift | 40μrad |
Over 8 hours long-term gain drift | 80μrad |
Operating temperature range | 25 ℃ ± 10 ℃ |
Signal interface | Analog:± 10 V or ± 5 V |
Digital:XY2-100 or PRS422 | |
Input power requirement(DC) | ± 15 V @ 5 A Max RMS |
Volume | 120mm×176mm×131mm |
Note:
(1) For laser wavelength 1030-1090 nm.
(2) All angles are in mechanical degrees.
(3) With F-Theta objective f = 160 mm. Speed value varies correspondingly with different focal lengths.
(4) Reapeatibility and temperature drift are measured within this speed.
(5) Single-stroke font with 1 mm height.
