The PSH14E 2D scanning head is an entry-level product for high-end industrial laser processing. Featuring a compact and lightweight design, it offers excellent cost performance and reliable long-term operation.
Application Compatibility: Ideal entry option for high-end industrial laser systems, supporting a wide range of laser processing technologies.
Structural Design: Compact and lightweight, sturdy and dustproof, easy to install with strong anti-interference performance.
Stable Heat Dissipation: Compatible with high-power equipment and ensures stable long-term operation.
Application Fields
The PSH14E 2D scanning head is applicable to various laser processing scenarios such as marking, scribing, laser cleaning and on-the-fly processing.
Mechanical Drawing（Unit of dimension: mm）

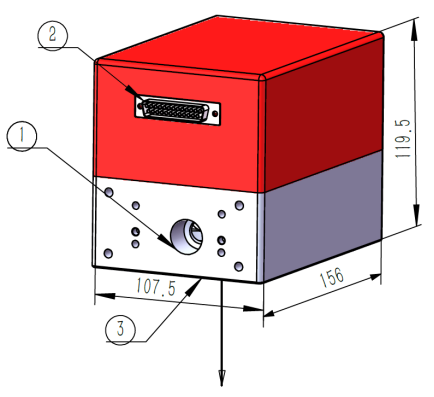

 | Legend: 1.Laser Inlet 2.Electrical Interface (XY2-100, Power Input) 3.Laser Outlet |
| PSH14E | |
 |  |

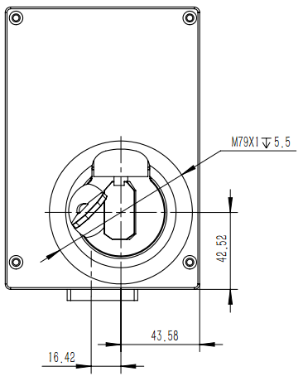

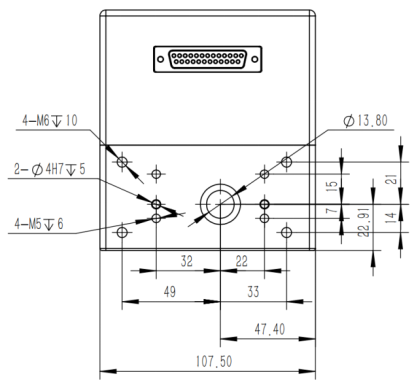

| Input Plate & Mounting Plate | Output Plate |
Specifications
PSH14E | Specifications |
Maximum allowed average laser power(1) | 500 W |
Optional adaptable wavelengths(8) | 355nm；532nm；1030-1090nm |
Aperture | 14 mm |
Effective scan angle(2) | ± 10° |
Tracking error | ≤0.18ms |
Step response | ≤0.4 ms |
Speed | |
Positioning / Jump(3) | ＜20m/s |
Line scan(3) | ＜20 m/s |
Vector scan(4) | ＜2.5 m/s |
Good writing quality(3)(5) | 650 cps |
Precision | |
Linearity | 99.8% |
Repeatability | 2 μrad |
Temperature drift | |
Offset | 25 μrad/℃ |
Gain | 25 μrad/℃ |
Long time drift(after 30 mins warm up) | |
Over 8 hours long-term offset drift | 50μrad |
Over 8 hours long-term gain drift | 100μrad |
Operating temperature range | 25 ℃ ± 10 ℃ |
Signal interface | Analog:± 10 V or ± 5 V |
Digital:XY2-100 or PRS422 | |
Input power requirement(DC) | ± 15 V @ 5 A Max RMS |
Volume | 107.5mm×156mm×119.5mm |
Note:
(1) For laser wavelength 1030-1090 nm.
(2) All angles are in mechanical degrees.
(3) With F-Theta objective f = 160 mm. Speed value varies correspondingly with different focal lengths.
(4) Reapeatibility and temperature drift are measured within this speed.
(5) Single-stroke font with 1 mm height.
(6) The long-term thermal drift test shall be carried out under a constant ambient temperature of approximately 25 °C, with the laser power kept below 500 W. High laser power shall not be adopted for thermal drift testing. Under high laser power, thermal distortion will occur in both the optical system and mechanical system. Consequently, it cannot be determined whether the measured drift originates from the inherent drift of the galvo scanner or from thermal deformation of the optical and mechanical systems.
(7) Appropriate delay parameters must be configured for normal operation of the galvo scanner. Failure to do so may result in abnormal operation of the galvo motor and even irreversible damage to the motor! Please contact PSI engineers regarding relevant parameter configuration issues.
(8) Wavelength customization available. Please consult PSI engineers!
